Cu 80-300 Metal Roof Sheet Forming Machine Automatic C Channel 15kw 480V

    Buy cheap Cu 80-300 Metal Roof Sheet Forming Machine Automatic C Channel 15kw 480V from wholesalers

    Buy cheap Cu 80-300 Metal Roof Sheet Forming Machine Automatic C Channel 15kw 480V from wholesalers
    • Buy cheap Cu 80-300 Metal Roof Sheet Forming Machine Automatic C Channel 15kw 480V from wholesalers

    Cu 80-300 Metal Roof Sheet Forming Machine Automatic C Channel 15kw 480V

    Ask Lasest Price
    Brand Name : DLY
    Model Number : C U Z machine
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    Cu 80-300 Metal Roof Sheet Forming Machine Automatic C Channel 15kw 480V

    CU 80-300 Automatic C Channel Forming Machine 15kw Metal Roof Sheet Forming Machine


    1.Main features of interchange cz cold rolled purlins machine


    The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:
    1.Produce different purlin size without changing rollers or spacers.
    2.No need changing cutter for different size.
    3.Easy operation, low maintenance cost
    4.Infinite sizing(any size within machine range),help to save material
    5.Optional Punch hole at any position of purlin web side and flange side

    We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Linbay Machinery will ensure you obtain perfectly functional profiles.


    2. Specifications of C U Z Purlin Roll Forming Machine


    ProfileWebFlangeLipThickness
    C80-300mm40-80mm10-25mm1.2-3.2mm
    Z120-300mm40-80mm10-25mm1.2-3.2mm
    Yield strength195Mpa235Mpa345Mpa550Mpa
    Thickness1.2mm-3.2mm1.2mm-3.0mm1.2mm-2.7mm1.2mm-2.5mm
    Slotted holeRound hole
    14x26mm(HOR.)D14mm
    16x26mm(HOR.)D16mm

    Equipment seriesPost-punch Post-cut
    Phase/voltage/frequencyCustomize
    Driven typeServo-motor
    CZ inter-change typeManual
    Size inter-change typeElectric
    Pre-cutterOptional
    Flange punchOptional
    DecoilerManual decoiler
    Hydraulic decoiler (Optional)
    Production capacityMaximum 35m/min
    Length tolerance±1.5mm

    3. Profiles of ​C U Z Purlin Roll Forming Machine


    Cu 80-300 Metal Roof Sheet Forming Machine Automatic C Channel 15kw 480V


    4.​ FAQ

    ● What is your machine warranty?

    some quick-wear parts will be container together with machine.

    if some parts damaged within one year, we will send new one to you for free, just freight up to you.


    ● Is it complicated to operate the machine?

    It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.


    ● How many different profile roofing one machine can produce?

    One machine can produce one or two different profiles.

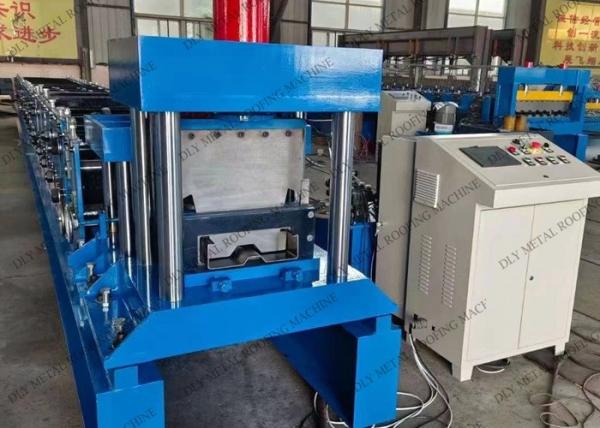

    5. Detail photos of ​C U Z Purlin Roll Forming Machine


    Cu 80-300 Metal Roof Sheet Forming Machine Automatic C Channel 15kw 480VCu 80-300 Metal Roof Sheet Forming Machine Automatic C Channel 15kw 480VCu 80-300 Metal Roof Sheet Forming Machine Automatic C Channel 15kw 480VCu 80-300 Metal Roof Sheet Forming Machine Automatic C Channel 15kw 480V
