    Ppgi 380v Sheet Metal Roll Forming Machine Plc Automatic Control

    PPGI Sheet Profiling Machine 380V PLC Automatic Control Roll Forming Machine


    1. Description of Sheet Metal Profiling Machine


    snow stop machine was used to produce snow stop profile, it is a triangle profile. 0.3mm-0.7mm GI and PPGI material. with 10m-15m/minute speed. PLC automatic control system.


    2. Specifications of Sheet Metal Profiling Machine


    1
    Suitable to process
    Color steel plate
    2
    Width of the plate
    360mm
    3
    Thickness of the plate
    0.3-0.8mm
    4
    De-coiler
    Manual one, can load 5 tons raw material
    5
    Rollers for forming
    16 rows
    6
    Diameter of the roller
    80mm
    7
    Rolling material
    Carbon Steel 45#
    8
    Main motor power
    5.5kw
    9
    Material of the cutting blade
    Cr12 mov
    10
    Hydraulic cutting power
    4kw
    11
    Processing precision
    Within 1.00mm
    12
    Control system
    Delta PLC control
    13
    Side panel of machine
    20mm
    14
    Main structure of the machine
    400 H steel
    15
    Weight
    About 7T
    17
    Voltage
    380V 50Hz 3phases(changeable as needs)
    19
    Custom
    According to customer's requirements

    3. Work Follow​ of Sheet Metal Profiling Machine

    Our metal roofing machines have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!


    Decoiler→Feeding Guide Device→Rolling Forming System→Hydraulic Not Stop Cutting And Punching Device→ Exit Rack

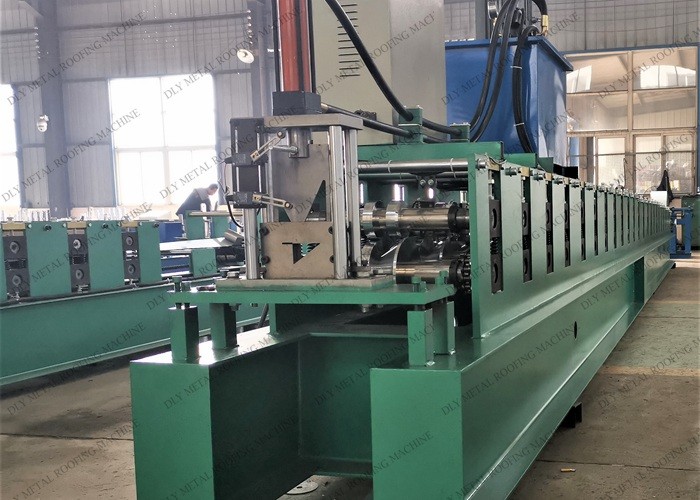

    Ppgi 380v Sheet Metal Roll Forming Machine Plc Automatic Control


    4. details of Sheet Metal Profiling Machine


    Ppgi 380v Sheet Metal Roll Forming Machine Plc Automatic ControlPpgi 380v Sheet Metal Roll Forming Machine Plc Automatic ControlPpgi 380v Sheet Metal Roll Forming Machine Plc Automatic ControlPpgi 380v Sheet Metal Roll Forming Machine Plc Automatic Control
