480V 10kw Steel Tile Roll Forming Machine Double Layer 10000kg

    Buy cheap 480V 10kw Steel Tile Roll Forming Machine Double Layer 10000kg from wholesalers

    Buy cheap 480V 10kw Steel Tile Roll Forming Machine Double Layer 10000kg from wholesalers
    • Buy cheap 480V 10kw Steel Tile Roll Forming Machine Double Layer 10000kg from wholesalers

    480V 10kw Steel Tile Roll Forming Machine Double Layer 10000kg

    Ask Lasest Price
    Brand Name : DLY
    Model Number : double layer machine
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    480V 10kw Steel Tile Roll Forming Machine Double Layer 10000kg

    10kw Double Layer Forming Machine 10000kg Steel Tile Roll Forming Machine


    1. Brief introduction of Double Layer Forming Machine


    Double Layer Forming Machine offers a profitable solution for space and energy, combines Roofing, Wall Cladding, Corrugated profiles in one machine.Base on stable and durable performance, we knows well on various Roofing profile in different markets. Maximize cover width, Logo embossing, Anti-capillary grooves, we also offer customized product for client to supply their innovative idea to market.

    this serious including Roofing, Wall Cladding, Corrugated profiles for both Coated Coil (PPGI/PPGL) and Galvanized Coil (GI/GL).


    2. Specifications of Double Layer Forming Machine


    1

    Power Requirement


    Voltage(380V 50HZ),or according client require
    Main Motor power5.5kw
    Cutter power5.5kw
    2Forming speed10-15m/min
    3Forming stations900:11row axis 870:13 row axis diameter 70 axis
    4Main Frame400H beam
    5Sidewall thickness20mm
    6Forming shaft diameter75mm 0.01mm-0.03mm(Grinding)
    7Chains1inch chain drive
    8Type of cuttingRoll formed and length-set cutting
    9Control systemPLC control
    10Install dimension(depend on the final design)7.3m×1.2m×1.3m
    12RollerHigh grade 45# steel, hard chrome plated
    13Feeding systemGuide type
    14Cutting bladeCr12
    15Frequency changerDelta

    3. Customer Feedback of Double Layer Forming Machine

    1) Engineer will give free training lessons to labors in buyer's factory.
    2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD150 per day for engineer.
    3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
    4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

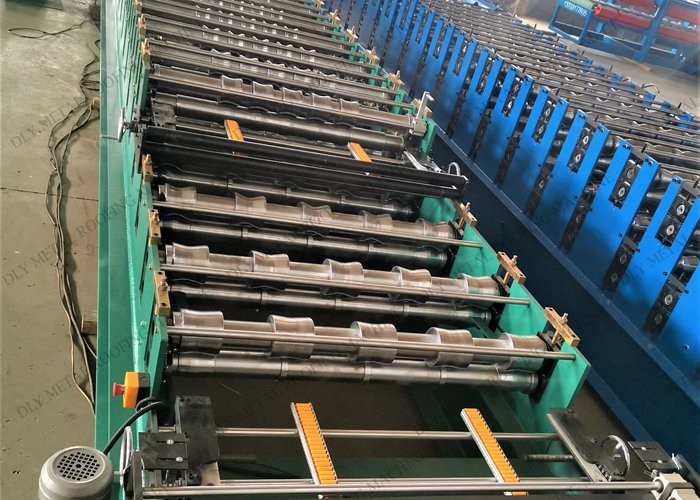

    4. details photos of Double Layer Forming Machine


    480V 10kw Steel Tile Roll Forming Machine Double Layer 10000kg

    480V 10kw Steel Tile Roll Forming Machine Double Layer 10000kg480V 10kw Steel Tile Roll Forming Machine Double Layer 10000kg

    480V 10kw Steel Tile Roll Forming Machine Double Layer 10000kg
