    7m Corrugated Sheet Trapezoidal Roll Forming Machine Metal Equipment

    7m Trapezoidal Metal Roof Roll Forming Machine Corrugated Sheet Metal Equipment


    1. Brief introduction of Trapezoidal Roll Forming Machine


    Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, corrugated panel, roof tile panel, step glazed tile, metal deck panel, standing seam panel, ridge cap, rain gutter, double layer/ two layer, K span panel and ridge cap machine. Its products are widely used in roof and wall system in workshop construction and housing construction.

    Roof Zinc Machine can produce material thickness range 0.3-0.8mm or 0.12-0.4mm, material PPGI, galvalume steel and galvanized steel, also we can customized the machine according to your drawing.
    This machine design is unit one, which means the control box and motor are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

    Different countries has different its own commonly used profiles and name. Here are some popular drawing profiles selected by our customers:
    America Area:
    1.ACANALADORA PARA LAMINA TR-90
    2. ACANALADORA DE LAMINA R-72
    3. CONFORMADORA PARA PLANCHA PV4/ PV6
    4. CONFORMADORA PARA CHAPA R-101
    5. CONFORMADORA PARA CALAMINA TR4
    6. Acanaladora para lamina TR101
    7. Perfil de telha Trapezio 25/1020
    8.Acanalada de Onda
    9. Acanalada 5-V
    UK: Box profile roll forming machine
    Africa: IBR 686 roll forming machine
    828mm Tile roll forming machine


    2. Description of Trapezoidal Roll Forming Machine


    Machine Specifications
    WeightAbout 9000kgs
    SizeAbout 11m x 1.7m x 1.5m (length x width x height)
    ColorMain color: blue
    Warning color: yellow
    Suitable Raw Material
    MaterialPPGI and PPGL Coils
    Thickness0.3-0.8mm
    Coil width1220mm
    Yield Strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stations22
    Diameter of forming rollers shafts80mm
    Roll Forming Speed15-20m/min
    Forming rollers materialNo.45 steel, coated with chromed treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric Power requirementMain motor power: 7.5kw
    Hydraulic unit motor power: 3kw
    Electric voltageAccording to customer’s requirement

    3. After Sales Service of Trapezoidal Roll Forming Machine

    1. Warranty :Two years,and we will provide technical support for whole life of the equipment.
    2. Delivery time: Within 25 days after deposit receipt your payment
    3. Guarantee period: 24months free service/ pay service all the machine life
    4. Installation and training
    If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
    workers/technician face to face.

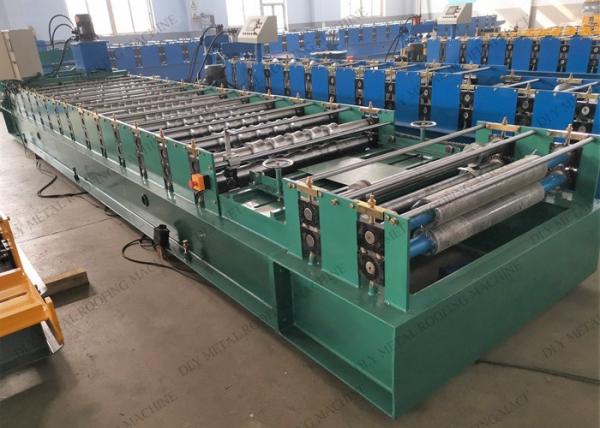

    4. Detail photos of Trapezoidal Roll Forming Machine


    7m Corrugated Sheet Trapezoidal Roll Forming Machine Metal Equipment

    7m Corrugated Sheet Trapezoidal Roll Forming Machine Metal Equipment7m Corrugated Sheet Trapezoidal Roll Forming Machine Metal Equipment7m Corrugated Sheet Trapezoidal Roll Forming Machine Metal Equipment
