380v Roof Trapezoidal Sheet Roll Forming Machine For Ppgi

    Buy cheap 380v Roof Trapezoidal Sheet Roll Forming Machine For Ppgi from wholesalers

    Buy cheap 380v Roof Trapezoidal Sheet Roll Forming Machine For Ppgi from wholesalers
    • Buy cheap 380v Roof Trapezoidal Sheet Roll Forming Machine For Ppgi from wholesalers

    380v Roof Trapezoidal Sheet Roll Forming Machine For Ppgi

    Ask Lasest Price
    Brand Name : DLY
    Model Number : trapezoidal metal roofing machine
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    380v Roof Trapezoidal Sheet Roll Forming Machine For Ppgi

    7m Trapezoidal Roll Forming Machine 380V Roof Sheet Roll Forming Machine


    1. Brief introduction of Trapezoidal Roll Forming Machine


    Our roll forming machine uses 28 forming stations to make perfect B Deck profile, if the yield strength of steel material is higher than 345MPa, it will need more forming stations. Our machine doby is sturdy and durable. The machine body is about 20 meters long, it can be disassembled into 3-4 sections for easy transportation and installation. The roll forming part has two 22KW motors, Siemens brand, powerful during production. Shafts φ85mm, forming rollers GCr15, chromed plated surface is bright and not easy to rust, and will not cause scrathes on the surface of galvanized steel. The exquisite processing technology makes the machine more smooth in operation and it has a longer service life. The profile produced by our roll forming machine is straight and horizontal, with high accuracy in flatness and distortion, and the length accuracy can be controlled within plus or minus 1mm.


    2. Description of Trapezoidal Roll Forming Machine


    item
    value
    Applicable Industries
    Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining
    Showroom Location
    None
    Condition
    New
    Type
    Tile Forming Machine
    Tile Type
    Steel
    Use
    ROOF
    Production Capacity
    30 m/min
    Place of Origin
    China
    Key Selling Points
    High Productivity
    Rolling thinckness
    0.3-0.8mm
    Feeding width
    1220mm/1000mm/914mm/950mm/1200mm
    Machinery Test Report
    Provided
    Video outgoing-inspection
    Provided
    Marketing Type
    Ordinary Product
    Core Components
    Motor, Bearing, Pump, PLC
    Product name
    Corrugated and Trapezoid roofing sheet making Machine
    Roller material
    45#steel Chrome Plated
    Cutting blade material
    Cr 12 High Grade Steel
    Shaft material
    45# Steel Outer Diameter: 70mm
    Main frame
    400H Steel
    Control system
    PLC(imported Brand)
    Feeding width
    1200mm/1220mm
    Suitable material
    Color Galvanizedsteel Coil
    Thickness
    0.3-0.8mm

    3. After Sales Service of Trapezoidal Roll Forming Machine

    1. Warranty :Two years,and we will provide technical support for whole life of the equipment.
    2. Delivery time: Within 25 days after deposit receipt your payment
    3. Guarantee period: 24months free service/ pay service all the machine life
    4. Installation and training
    If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
    workers/technician face to face.

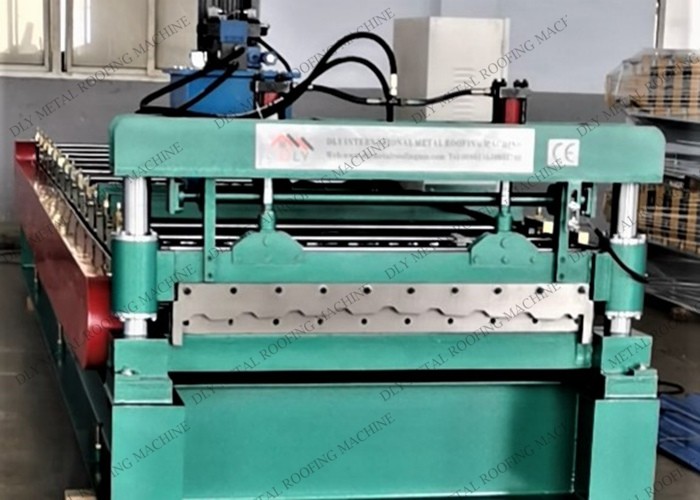

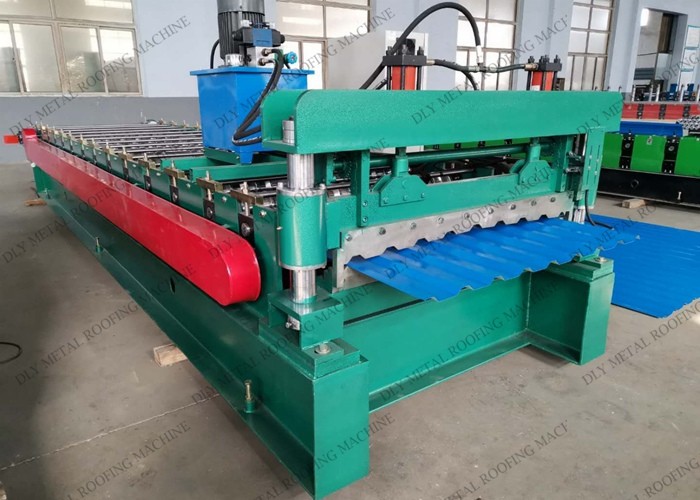

    4. Detail photos of Trapezoidal Roll Forming Machine


    380v Roof Trapezoidal Sheet Roll Forming Machine For Ppgi380v Roof Trapezoidal Sheet Roll Forming Machine For Ppgi380v Roof Trapezoidal Sheet Roll Forming Machine For Ppgi380v Roof Trapezoidal Sheet Roll Forming Machine For Ppgi
