    1250mm Ppgi Sheet Metal Roll Forming Machine With Hydraulic Cutting

    Ask Lasest Price
    Brand Name : DLY
    Model Number : Trapezoidal profile machine
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    1250mm Ppgi Sheet Metal Roll Forming Machine With Hydraulic Cutting

    1250mm Ppgi Sheet Metal Roll Forming Machine With Hydraulic Cutting

    1. Brief introduction of Trapezoidal Roll Forming Machine

    we use bigger solid shaft diameter 80mm, which give bigger support during forming and can use for many years without deformation. 24roller station guarantee the final product precise and smooth. This roll forming machine weight about 13tons, that is mean, we use about 18ton raw material to make this forming machine.
    besides, roll forming machine parts are Exquisite processed, for example, one set rollers will be processed by two days on our 12 CNC machine.
    The last but no least, Mitsubishi or Siemens control system adopt to guarantee easy operation and stable factions.
    roll forming Machines before delivery, well installed, test many times to its best status. You are welcomed to test our machines in our factory. Or we will help you check every details your concern.
    Once rollforming machine arrive your factory,you only connect some wires and tubes according to our instruction book and video. Our technicians and engineers can assist you in your factory if your required.

    Standard roll forming machines component(working speed about 15-20m/min, 7 ton manual decoiler, forming system with post cut, hydraulic station, PLC controller, run out table without power

    2. Description of Trapezoidal Roll Forming Machine

    item
    value
    Applicable Industries
    Building Material Shops, Manufacturing Plant, Construction works
    Showroom Location
    None
    Condition
    New
    Type
    Tile Forming Machine
    Tile Type
    Steel
    Use
    ROOF
    Production Capacity
    0-6M/min
    Voltage
    380V/ 50HZ /3PH
    Dimension(L*W*H)
    7200*2100*1500mm
    Weight
    6500kg
    Key Selling Points
    Automatic
    Rolling thinckness
    0.35-0.65mm
    Feeding width
    1250mm
    Machinery Test Report
    Provided
    Video outgoing-inspection
    Provided
    Marketing Type
    Hot Product 2021
    Warranty of core components
    1 Year
    Core Components
    Motor, Pump, PLC
    After-sales Service Provided
    Engineers available to service machinery overseas
    Raw Material
    Prepainted Sheet
    Making Speed
    0-6M/min
    Weight
    6500KGS
    Certification
    CE
    Sheet Thickness
    0.35-0.65mm
    Control System
    PLC(Touch Screen)
    Making Stations
    13
    Machine's Size
    7200*2100*1500mm
    Warranty
    1 Year


    3. After-Sale Service of Trapezoidal Roll Forming Machine
    - Provide Pre-sales Consultant & On-purchase service & After-sales service 24hr × 7days per week

    - Give technical suggestion

    - Test the machine before shipment

    - Provide technical guidance relate to use the machine

    - Supply one-year warranty period for the machine

    - Provide the spare parts at cost price after warranty period

    - Collect the feedback for the machine working

    - Provide long-term technical assistance.

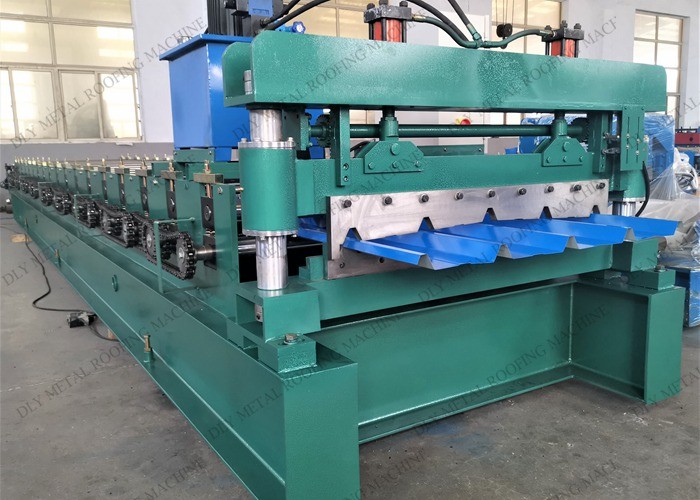

    4. Detail photos of Trapezoidal Roll Forming Machine

    1250mm Ppgi Sheet Metal Roll Forming Machine With Hydraulic Cutting1250mm Ppgi Sheet Metal Roll Forming Machine With Hydraulic Cutting

    1250mm Ppgi Sheet Metal Roll Forming Machine With Hydraulic Cutting1250mm Ppgi Sheet Metal Roll Forming Machine With Hydraulic Cutting
