    Automatic Control System Corrugated Roofing Machine 6000mm Roof Tile Roll Former

    Automatic Control System Corrugated Roofing Machine 6000mm Roof Tile Roll Former


    1. Description of Corrugated Roofing Machine

    Corrugated Roofing Machine was used for corrugate metal sheet to different profiles, then these profiles can be used as roofing, wall, fence, light steel house and etc., our roll forming machine adopt PLC automatic control system, only need one person to operate.

    this profile is very popular used for roofing, every month have this profile machine in production.

    Our advantage is we have professional design team, we take EU machine quality as our machine standard. We pay attention to every machine details and components, so the quality of our machines has been recognized by our customers and peers.


    2. Specifications of Corrugated Roofing Machine


    Suitable materialPPGI/Aluminium sheet/galvanized sheet/various sheet plates
    Thickness of coil sheet0.3-0.8mm
    Coil width1200-1250mm
    Effective width1100mm
    Material of main frame400H steel
    Diameter of Soild shaft70mm, high grade 45# steel
    Roller

    High grade 45# steel, quenched and tempered treatment, hard

    chrome plated 0.05-0.07mm

    Thickness of middle plate20mm, 45# steel plate
    Forming station10rows
    Drive typeBy chain(1.0 inch), link bearing model 6210
    Power of main motor5.5 kw, servo motor
    Sidewall connection bar25mm, zinc plated
    Forming speedAbout 12-18m/min
    Hydraulic pump station5.5kw, 40# hydraulic oil
    PLCDELTA(TAIWAN)/Mitsubishi
    Material of razor bladesCr 12, quenching 58-62°C
    Frequency converter

    It has the advantage of slowing down before cutting,

    to ensure the length accuracy ±1mm, far better than industrial

    standard ±3mm.

    SwitchCHNT
    Frequency changerSAJ


    3. workflow of Corrugated Roofing Machine


    Manual decoiler——Feeding——Roll forming——Hydraulic stamp and cutting——Output table


    Automatic Control System Corrugated Roofing Machine 6000mm Roof Tile Roll Former


    4.​ FAQ

    ● What is your machine warranty?

    some quick-wear parts will be container together with machine.

    if some parts damaged within one year, we will send new one to you for free, just freight up to you.


    ● Is it complicated to operate the machine?

    It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.


    ● How many different profile roofing one machine can produce?

    One machine can produce one or two different profiles.

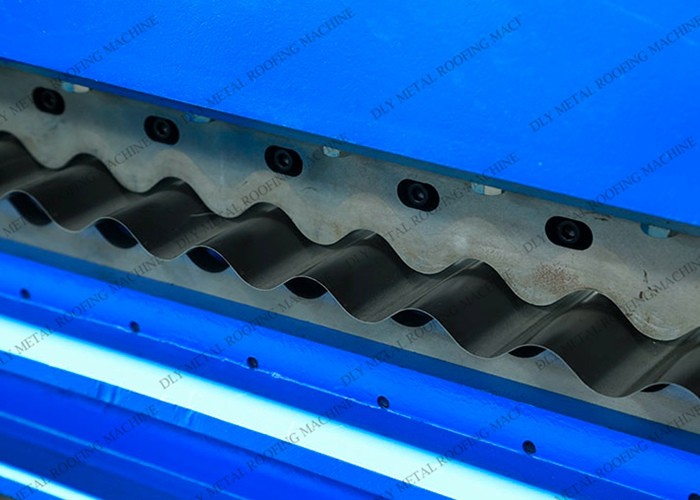

    5. details of Corrugated Roofing Machine


    Automatic Control System Corrugated Roofing Machine 6000mm Roof Tile Roll FormerAutomatic Control System Corrugated Roofing Machine 6000mm Roof Tile Roll FormerAutomatic Control System Corrugated Roofing Machine 6000mm Roof Tile Roll FormerAutomatic Control System Corrugated Roofing Machine 6000mm Roof Tile Roll Former
