Automatic 75mm Double Layer Forming Machine 3P Metal Roofing Sheet Former

    Buy cheap Automatic 75mm Double Layer Forming Machine 3P Metal Roofing Sheet Former from wholesalers

    Buy cheap Automatic 75mm Double Layer Forming Machine 3P Metal Roofing Sheet Former from wholesalers
    • Buy cheap Automatic 75mm Double Layer Forming Machine 3P Metal Roofing Sheet Former from wholesalers

    Automatic 75mm Double Layer Forming Machine 3P Metal Roofing Sheet Former

    Ask Lasest Price
    Brand Name : DLY
    Model Number : double layer machine
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    Automatic 75mm Double Layer Forming Machine 3P Metal Roofing Sheet Former

    1250mm Automatic Metal Double Layer Forming Machine With PLC


    1. Brief introduction of Double Layer Forming Machine

    Double Layer Forming Machine ​was used for corrugate metal sheet to different profiles, then these profiles can be used as roofing, wall, fence, light steel house and etc., our roll forming machine adopt PLC automatic control system, only need one person to operate.

    this profile is very popular used for roofing, every month have this profile machine in production.

    Our advantage is we have professional design team, we take EU machine quality as our machine standard. We pay attention to every machine details and components, so the quality of our machines has been recognized by our customers and peers.

    A roll forming machine (or metal forming machine) fabricates specific configurations out of long strips of metal, most commonly coiled steel. In most applications, the required cross-section profile of the piece is specifically designed for the machine to bend the metal as necessary.


    2. Specifications of Double Layer Forming Machine


    Machine Specifications
    WeightAbout 12000kgs
    SizeAbout 11m x 1.7m x 1.5m (length x width x height)
    ColorMain color: blue
    Warning color: yellow
    Suitable Raw Material
    MaterialColored Steel Coils
    Thickness0.3-0.7mm
    Coil width1220mm
    Yield Strength2350Mpa
    Main Technical Parameters
    Quantity of forming rollers stations20-22
    Diameter of forming rollers shafts75mm
    Roll Forming Speed15-20m/min
    Forming rollers materialNo.45 steel, coated with chromed treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric Power requirementMain motor power: 7.5kw
    Hydraulic unit motor power: 3kw
    Electric voltageAccording to customer’s requirement

    3. Customer Feedback of Double Layer Forming Machine


    Our Corrugated Roofing Machine​ have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!


    Automatic 75mm Double Layer Forming Machine 3P Metal Roofing Sheet Former

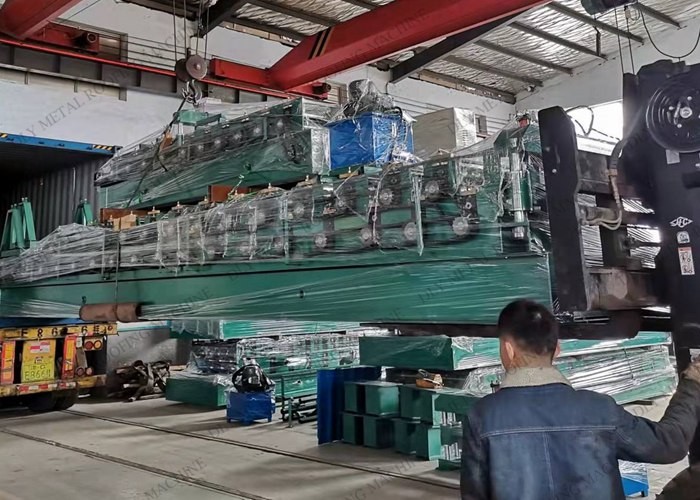

    4. details photos of Double Layer Forming Machine


    Automatic 75mm Double Layer Forming Machine 3P Metal Roofing Sheet FormerAutomatic 75mm Double Layer Forming Machine 3P Metal Roofing Sheet FormerAutomatic 75mm Double Layer Forming Machine 3P Metal Roofing Sheet FormerAutomatic 75mm Double Layer Forming Machine 3P Metal Roofing Sheet Former
