    5000kg Trapezoidal Roll Forming Machine 15kw Steel Roofing Machine

    Ask Lasest Price
    Brand Name : DLY
    Model Number : TR18
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    5000kg Trapezoidal Roll Forming Machine 15kw Steel Roofing Machine

    Steel Roofing 15kw PLC Trapezoidal Roll Forming Machine With Hydraulic Cutting


    1. Brief introduction of Trapezoidal Roll Forming Machine


    This metal sheet roll forming machine produces trapezoidal sheets from colour prepainted steel coils, Galvanized steel coils, aluzinc sheets, and sometimes aluminium steel coils (aluminum roof panels are prefered in Nigeria). Generally, material thickness varies from 0.3 to 0.8mm, and width varies from 914mm to 1250mm. However, in some applications, material thickness can reach up to 1.5mm, like roof deck. Furthermore, in some countries or areas, people use G550 material to make full hard metal roofing sheets.


    2. Description of Trapezoidal Roll Forming Machine


    Machine Specifications
    WeightAbout 9000kgs
    SizeAbout 11m x 1.7m x 1.5m (length x width x height)
    ColorMain color: blue
    Warning color: yellow
    Suitable Raw Material
    MaterialPPGI and PPGL Coils
    Thickness0.3-0.8mm
    Coil width1220mm & 1450mm
    Yield Strength235Mpa-550Mpa
    Main Technical Parameters
    Quantity of forming rollers stations24
    Diameter of forming rollers shafts80mm
    Roll Forming Speed15-20m/min
    Forming rollers materialNo.45 steel, coated with chromed treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric Power requirementMain motor power: 7.5kw
    Hydraulic unit motor power: 3kw
    Electric voltageAccording to customer’s requirement

    3. Packing&Shipping of Trapezoidal Roll Forming Machine


    – 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

    – 2.This producing line is maintained free of charge for 24 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.

    – 3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
    exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.

    – 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.

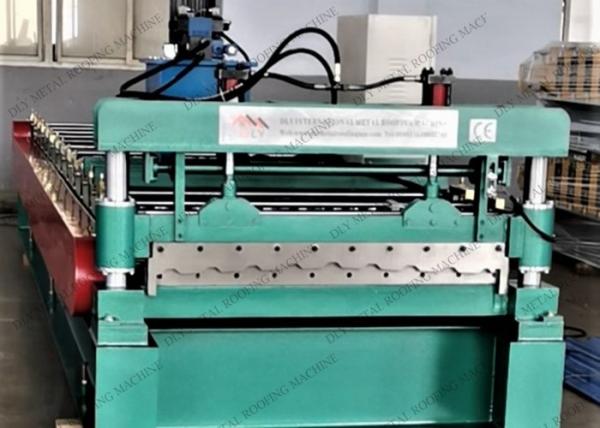

    4. Detail photos of Trapezoidal Roll Forming Machine


    5000kg Trapezoidal Roll Forming Machine 15kw Steel Roofing Machine5000kg Trapezoidal Roll Forming Machine 15kw Steel Roofing Machine

    5000kg Trapezoidal Roll Forming Machine 15kw Steel Roofing Machine5000kg Trapezoidal Roll Forming Machine 15kw Steel Roofing Machine
