1250mm Corrugated Sheet Rolling Machine 6.5T Standing Seam Roll Former

    Buy cheap 1250mm Corrugated Sheet Rolling Machine 6.5T Standing Seam Roll Former from wholesalers

    Buy cheap 1250mm Corrugated Sheet Rolling Machine 6.5T Standing Seam Roll Former from wholesalers
    • Buy cheap 1250mm Corrugated Sheet Rolling Machine 6.5T Standing Seam Roll Former from wholesalers

    1250mm Corrugated Sheet Rolling Machine 6.5T Standing Seam Roll Former

    Ask Lasest Price
    Brand Name : DLY
    Model Number : sinus
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    1250mm Corrugated Sheet Rolling Machine 6.5T Standing Seam Roll Former

    1250mm 380V Sinus Corrugated Roofing Machine With Hydraulic Cutting


    1. Description of Corrugated Roofing Machine


    Corrugated sheet as a durable and economical product, always popular for customers and makes huge demand in worldwide markets.

    We knows well on corrugated machine, we offer 76.2mm(3 inch) pitch as standard profile and also customize heavy duty profile which thickness up to 4mm for agricultural solutions.

    This serious including heavy duty profile and standard 76.2mm(3 inch) pitch with 914mm(3ft), 1000mm, 1220mm(4ft) width available for both Coated Coil (PPGI/PPGL) and Galvanized Coil (GI/GL).


    2. Specifications of Corrugated Roofing Machine


    Item
    Name
    Description
    1
    Feeding device
    with two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers.
    2
    Machine body
    350H steel welded
    3
    Machine frame
    18mm middle plate welded
    4
    Roller station
    16 stations
    5
    Roller material
    45# steel with quenched treatment and hard chroming
    6
    Shaft diameter
    80mm,solid
    7
    Shaft material
    45# steel with tempering treatment
    8
    Motor power
    5.5 kw
    9
    Speed
    0-20m/min
    10
    Transmission
    By Double chains
    11
    Voltage
    380V,50HZ,3PH

    3. workflow of Corrugated Roofing Machine


    Manual decoiler——Feeding——Roll forming——Hydraulic stamp and cutting——Output table


    1250mm Corrugated Sheet Rolling Machine 6.5T Standing Seam Roll Former


    4.​ FAQ

    ● What is your machine warranty?

    some quick-wear parts will be container together with machine.

    if some parts damaged within one year, we will send new one to you for free, just freight up to you.


    ● Is it complicated to operate the machine?

    It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.


    ● How many different profile roofing one machine can produce?

    One machine can produce one or two different profiles.

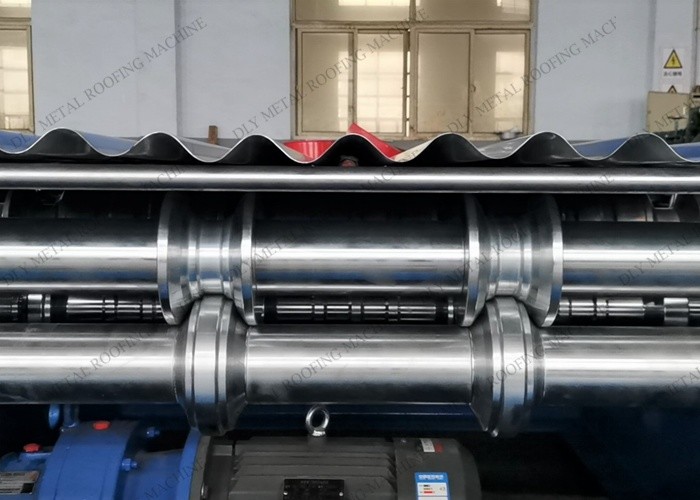

    5. details of Corrugated Roofing Machine


    1250mm Corrugated Sheet Rolling Machine 6.5T Standing Seam Roll Former1250mm Corrugated Sheet Rolling Machine 6.5T Standing Seam Roll Former1250mm Corrugated Sheet Rolling Machine 6.5T Standing Seam Roll Former1250mm Corrugated Sheet Rolling Machine 6.5T Standing Seam Roll Former

    Quality 1250mm Corrugated Sheet Rolling Machine 6.5T Standing Seam Roll Former for sale
