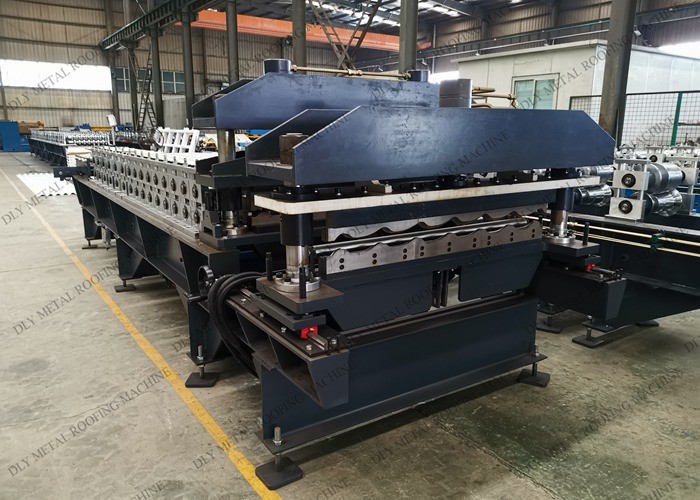

Automatic 5.5kw Corrugated Roofing Machine Sinus 10 TON Steel Roofing Machine

    Buy cheap Automatic 5.5kw Corrugated Roofing Machine Sinus 10 TON Steel Roofing Machine from wholesalers

    Buy cheap Automatic 5.5kw Corrugated Roofing Machine Sinus 10 TON Steel Roofing Machine from wholesalers
    • Buy cheap Automatic 5.5kw Corrugated Roofing Machine Sinus 10 TON Steel Roofing Machine from wholesalers

    Automatic 5.5kw Corrugated Roofing Machine Sinus 10 TON Steel Roofing Machine

    Ask Lasest Price
    Brand Name : DLY
    Model Number : sinus
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    Automatic 5.5kw Corrugated Roofing Machine Sinus 10 TON Steel Roofing Machine

    5.5kw Sinus 10T Corrugated Machine With PLC Automatic


    1. Description of Corrugated Roofing Machine

    • This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
    • Fully Automatic Control System with PLC.
    • Easy operation: Key in the length and quantity on the control panel.
    • After-sales service
    • we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.

    2. Specifications of Corrugated Roofing Machine


    SPECIFICATIONS FOR IBR ROOFING ROLL FORMING MACHINE
    Machine specification
    Electric power
    Kw
    5.5KW -11KW
    Machine Weight
    Tons
    8.0T–13.0T
    Machine Dimensions

    m
    9.0m x 1.8m x 1.5m
    Station quantity
    stations
    18–24 steps
    Raw material
    Steel Thickness (BMT)
    mm
    0.3–0.8mm
    Coil Width
    mm
    914–1250mm
    Material Strength
    G300–G550
    Production specification
    Forming speed
    m/min
    20-24 (or customizable speed)
    Control system
    PLC, HMI
    Rolling transmission
    Hydraulic, Inverter
    Cutting and punching system
    Hydraulic
    Length Tolerance
    mm
    ± 2

    3. workflow of Corrugated Roofing Machine

    Manual decoiler——Feeding——Roll forming——Hydraulic stamp and cutting——Output table


    Automatic 5.5kw Corrugated Roofing Machine Sinus 10 TON Steel Roofing Machine


    4.​ Service of our Corrugated Roofing Machine

    • Free technical support and free accessories supply.
    • Engineer available to service machinery overseas.
    • One year warranty is provided.
    • Long life technical guidance for free.
    • We always offer technical support, quick response, all your inquire will be replied in 24 hours.

    5. details of Corrugated Roofing Machine


    Automatic 5.5kw Corrugated Roofing Machine Sinus 10 TON Steel Roofing MachineAutomatic 5.5kw Corrugated Roofing Machine Sinus 10 TON Steel Roofing MachineAutomatic 5.5kw Corrugated Roofing Machine Sinus 10 TON Steel Roofing MachineAutomatic 5.5kw Corrugated Roofing Machine Sinus 10 TON Steel Roofing Machine
