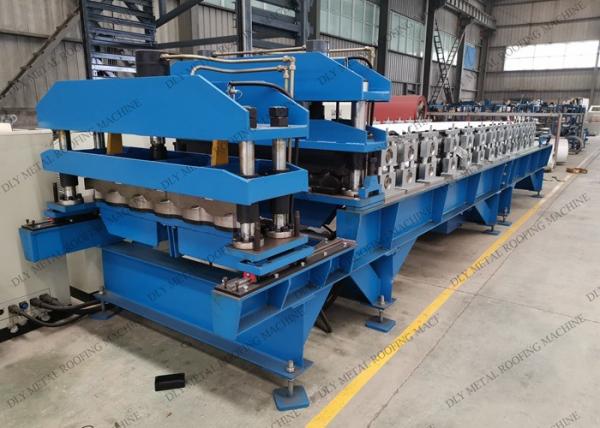

    5.5kw Corrugated Roofing Machine 1250mm Mobile Roof Sheeting Machine

    5.5kw 1250mm Sinus Corrugated Machine With PLC Control


    1. Description of Corrugated Roofing Machine


    Now our corrugated sheet roll former have been exported to many countries, the most important is that all you need can be customized. There are different popular width of coils in different market, so there are different width of corrugated sheets.


    If you have coil width is 1250mm, the width of corrugated sheet will be 1064mm.

    If you have coil width is 1200mm, the width of corrugated sheet will be 988mm

    If you have coil width is 1000mm, the width of corrugated sheet will be 836mm

    If you have coil width is 914mm, the width of corrugated sheet will be 762mm


    2. Specifications of Corrugated Roofing Machine


    Article No.Item NameSpecification
    1Width of feeding materialAs ur need
    2Thickness of feeding material0.3-0.8 mm coil sheet
    3Roller station9-18stations
    4Shaft Diameter70-80 mm
    5Productivity8-15 m/min
    6Rollers' material45# steel with 0.05mm chrome
    7Shaft material45# steel with 0.05mm chrome
    8Weight6.5 ton
    9length6.5 m
    10Voltage380V 50Hz 3phases
    11ControlPLC
    12Decoiler8 Tons
    13Motor3-7.5kw
    14Driving wayChain transmission
    15Chain size1 inch
    16Cutting systemHydraulic cutter


    3. workflow of Corrugated Roofing Machine


    Manual decoiler——Feeding——Roll forming——Hydraulic stamp and cutting——Output table


    5.5kw Corrugated Roofing Machine 1250mm Mobile Roof Sheeting Machine


    4.​ Service of our Corrugated Roofing Machine

    • Free technical support and free accessories supply.
    • Engineer available to service machinery overseas.
    • One year warranty is provided.
    • Long life technical guidance for free.
    • We always offer technical support, quick response, all your inquire will be replied in 24 hours.

    5. details of Corrugated Roofing Machine


    5.5kw Corrugated Roofing Machine 1250mm Mobile Roof Sheeting Machine5.5kw Corrugated Roofing Machine 1250mm Mobile Roof Sheeting Machine5.5kw Corrugated Roofing Machine 1250mm Mobile Roof Sheeting Machine5.5kw Corrugated Roofing Machine 1250mm Mobile Roof Sheeting Machine
