7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former

    Buy cheap 7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former from wholesalers

    Buy cheap 7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former from wholesalers
    • Buy cheap 7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former from wholesalers

    7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former

    Ask Lasest Price
    Brand Name : DLY
    Model Number : sinus profile
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

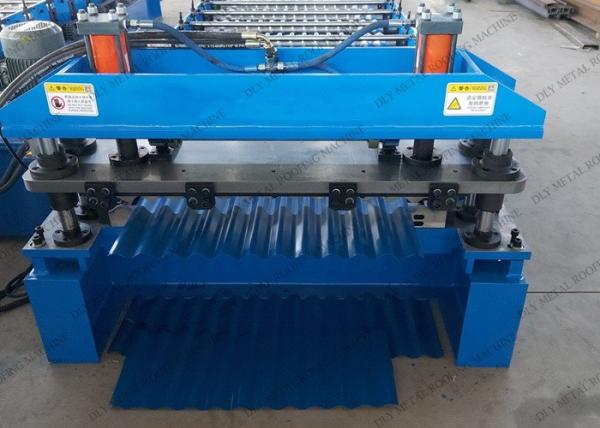

    7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former

    Sinus 380V Hydraulic Cutting Corrugated Roofing Machine With PLC


    1. Description of Corrugated Roofing Machine

    Corrugated Roofing Machine was used for corrugate metal sheet to different profiles, then these profiles can be used as roofing, wall, fence, light steel house and etc., our roll forming machine adopt PLC automatic control system, only need one person to operate.

    this profile is very popular used for roofing, every month have this profile machine in production.

    Our advantage is we have professional design team, we take EU machine quality as our machine standard. We pay attention to every machine details and components, so the quality of our machines has been recognized by our customers and peers.


    2. Specifications of Corrugated Roofing Machine


    Main motor power
    5.5 KW
    Roller material
    45# steel with chromed treatment
    Roller shaft material
    45# steel with quenched treatment
    Work speed
    0-20 m/min
    Dimesion
    8500*1650*1500mm
    Structure
    Middle plate welded frame structure
    Main frame
    350 H steel welded
    Drive mode
    Chains drive
    Control system
    PLC control system
    Hydraulic station
    4kw with cooling fan system or not
    Cutting type
    Hydraulic cutting
    Cutter material
    GCr12 chromed and quenched for good hardness and using



    3. Work Flow​ of Corrugated Roofing Machine


    Our Corrugated Roofing Machine​ have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!


    7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former


    4.​ FAQ

    ● What is your machine warranty?

    some quick-wear parts will be container together with machine.

    if some parts damaged within one year, we will send new one to you for free, just freight up to you.


    ● Is it complicated to operate the machine?

    It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.


    ● How many different profile roofing one machine can produce?

    One machine can produce one or two different profiles.


    5. details of Corrugated Roofing Machine


    7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former
