10kw Roofing Sheet Profiling Machine 4.5T Profile Sheet Cutting Machine

    Buy cheap 10kw Roofing Sheet Profiling Machine 4.5T Profile Sheet Cutting Machine from wholesalers

    Buy cheap 10kw Roofing Sheet Profiling Machine 4.5T Profile Sheet Cutting Machine from wholesalers
    • Buy cheap 10kw Roofing Sheet Profiling Machine 4.5T Profile Sheet Cutting Machine from wholesalers

    10kw Roofing Sheet Profiling Machine 4.5T Profile Sheet Cutting Machine

    Ask Lasest Price
    Brand Name : DLY
    Model Number : door machine
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    10kw Roofing Sheet Profiling Machine 4.5T Profile Sheet Cutting Machine

    380v 10kw Shutter Door Sheet Metal Profiling Machine With Hydraulic Cutting


    1. Description of Sheet Metal Profiling Machine


    Rolling shutter door is commonly used for garages, shops front show windows, etc. since they are quite strong and offer proper safety to the property. The door shutter works as a curtain, providing adequate protection and safety against fire and thefts.In this way, a door is sufficiently strong and bring proper safety to glass and interiors when closed.


    2. Specifications of Sheet Metal Profiling Machine


    Machine Specifications
    WeightAbout 3500kgs
    SizeAbout 6m x 1.6m x 1.5m (length x width x height)
    ColorMain color: blue
    Warning color: yellow
    Suitable Raw Material
    MaterialGalvanized Steel Coils
    Thickness0.3-0.6mm
    Yield Strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stations12-14
    Diameter of forming rollers shafts60mm
    Roll Forming Speed15-20m/min
    Forming rollers materialNo.45 steel, coated with chromed treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric Power requirementMain motor power: 3kw
    Hydraulic unit motor power: 3kw
    Electric voltageAccording to customer’s requirement



    3. feedback of Sheet Metal Profiling Machine

    Our metal roofing machines have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!


    10kw Roofing Sheet Profiling Machine 4.5T Profile Sheet Cutting Machine

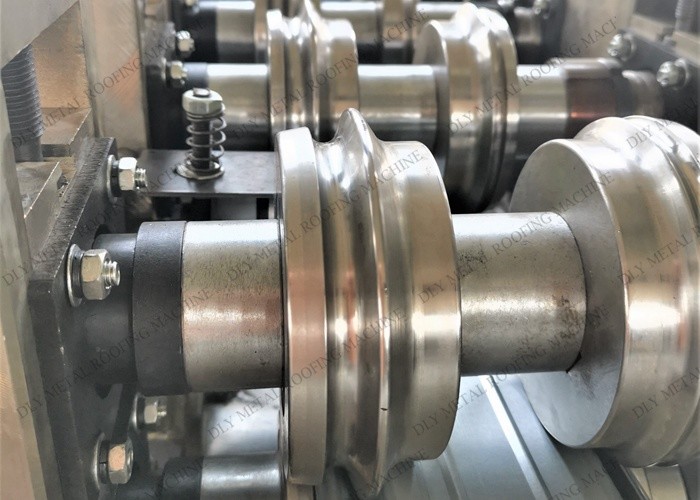

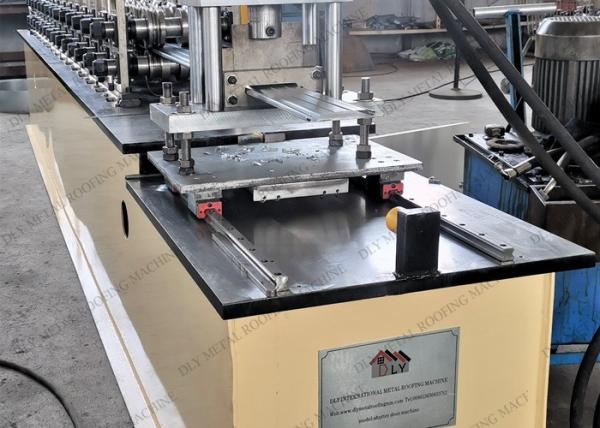

    4. details of Sheet Metal Profiling Machine


    10kw Roofing Sheet Profiling Machine 4.5T Profile Sheet Cutting Machine10kw Roofing Sheet Profiling Machine 4.5T Profile Sheet Cutting Machine10kw Roofing Sheet Profiling Machine 4.5T Profile Sheet Cutting Machine10kw Roofing Sheet Profiling Machine 4.5T Profile Sheet Cutting Machine
