    380V CZ Purlin Roll Forming Machine 50hz Steel Structure Purlin Roll Former

    380V Automatic C&Z Purlin Roll Forming Machine With Hydraulic Cutting


    1. Description of C U Z Purlin Roll Forming Machine


    Our purlin machine driven by gearboxes, consists of decoiler, feeding and levelling device, punching system, pre-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system). Its special feature: Assemble with liner guide way to make machine change web size easily and smoothly, Produce standard products with yield strength up to 550Mpa,Long production line,no open mouth on final products, C/Z interchange only with 3 steps and within 5-15mins;Changing size fully automatically. Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision. Large range web size is 120-450mm and thickness up to 4.5mm, which used widely and would be the most popular model in the near future.


    2. Specifications of C U Z Purlin Roll Forming Machine


    ProfileWebFlangeLipThickness
    C80-300mm40-80mm10-25mm1.2-3.2mm
    Z120-300mm40-80mm10-25mm1.2-3.2mm
    Yield strength195Mpa235Mpa345Mpa550Mpa
    Thickness1.2mm-3.2mm1.2mm-3.0mm1.2mm-2.7mm1.2mm-2.5mm
    Slotted holeRound hole
    14x26mm(HOR.)D14mm
    16x26mm(HOR.)D16mm

    Equipment seriesPost-punch Post-cut
    Phase/voltage/frequencyCustomize
    Driven typeServo-motor
    CZ inter-change typeManual
    Size inter-change typeElectric
    Pre-cutterOptional
    Flange punchOptional
    DecoilerManual decoiler
    Hydraulic decoiler (Optional)
    Production capacityMaximum 35m/min
    Length tolerance±1.5mm

    3. Profiles of ​C U Z Purlin Roll Forming Machine


    380V CZ Purlin Roll Forming Machine 50hz Steel Structure Purlin Roll Former


    4.​ Advantages of ​C U Z Purlin Roll Forming Machine

    • 【Machine Long Lifer】Rollers are made from Cr12 mould steel being quenched treatment, HRC58-60, CNC machine tooled to increase rollers precision.
    • 【High Efficiency】15-18m per minute. Produce 7000m per shift for 8 hours one day.
    • 【High Preision】Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
    • 【Automatic & Easy Operate】Safe and easy to operate with Mitsubishi PLC touch screen operating system. Friendly man-machine interaction.
    • 【Excellent Services】Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime services for our machines.

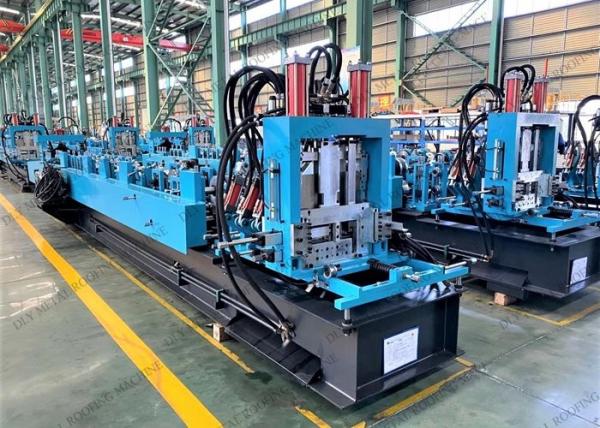

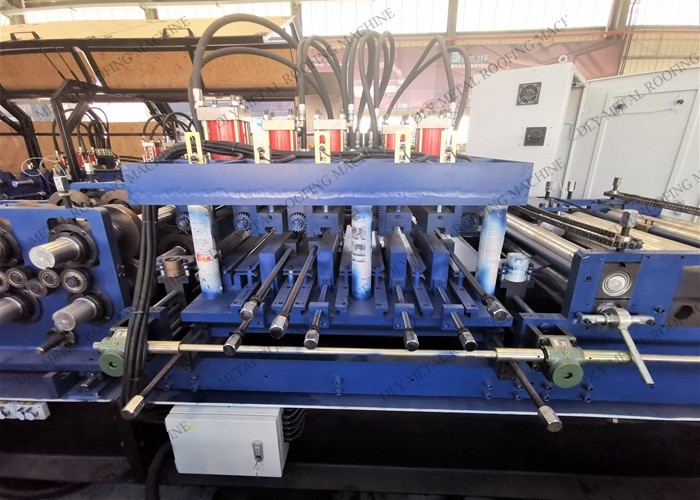

    5. Detail photos of ​C U Z Purlin Roll Forming Machine


    380V CZ Purlin Roll Forming Machine 50hz Steel Structure Purlin Roll Former380V CZ Purlin Roll Forming Machine 50hz Steel Structure Purlin Roll Former

    380V CZ Purlin Roll Forming Machine 50hz Steel Structure Purlin Roll Former

    380V CZ Purlin Roll Forming Machine 50hz Steel Structure Purlin Roll Former
