    PLC Automatic C Purlin Machine Hydraulic Cutting 15kw Purlin Forming Machine

    Automatic Change 15kw Hydraulic Cutting Purlin Roll Forming Machine With PLC


    1. Description of C U Z Purlin Roll Forming Machine


    Our purlin machine driven by gearboxes, consists of decoiler, feeding and levelling device, punching system, pre-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system). Its special feature: Assemble with liner guide way to make machine change web size easily and smoothly, Produce standard products with yield strength up to 550Mpa,Long production line,no open mouth on final products, C/Z interchange only with 3 steps and within 5-15mins;Changing size fully automatically.Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision. Large range web size is 120-450mm and thickness up to 4.5mm, which used widely and would be the most popular model in the near future.


    2. Specifications of C U Z Purlin Roll Forming Machine


    Machine Specifications
    WeightAbout 9000kgs
    SizeAbout 10m x 1.4m x 1.8m (length x width x height)
    ColorMain color: blue
    Warning color: yellow
    Suitable Raw Material
    MaterialGalvanized Steel Coils
    Thickness1.5-3.0mm
    Coil widthAccording to products size
    Yield strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stations14-16
    Diameter of forming rollers shafts75mm
    Roll Forming Speed10-15m/min
    Production Speed4-6m/min
    Forming rollers materialGcr15 mould steel, with quenched treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric power requirementMain motor power: 15kw
    Hydraulic unit motor power: 5.5kw
    Electric voltageAccording to customers requirement

    3. Profiles of ​C U Z Purlin Roll Forming Machine

    PLC Automatic C Purlin Machine Hydraulic Cutting 15kw Purlin Forming Machine


    4.​ Flow chart of Purlin Roll Forming Machine


    Decoiling – Feeding - Flattening — Lip forming - Flange forming - Angle forming – Straightening - Punching - Cutting – Stacking


    PLC Automatic C Purlin Machine Hydraulic Cutting 15kw Purlin Forming Machine

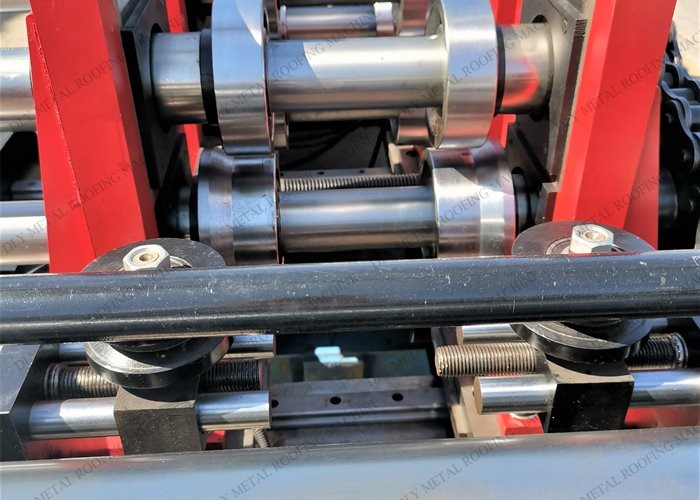

    5. Detail photos of ​C U Z Purlin Roll Forming Machine


    PLC Automatic C Purlin Machine Hydraulic Cutting 15kw Purlin Forming MachinePLC Automatic C Purlin Machine Hydraulic Cutting 15kw Purlin Forming MachinePLC Automatic C Purlin Machine Hydraulic Cutting 15kw Purlin Forming MachinePLC Automatic C Purlin Machine Hydraulic Cutting 15kw Purlin Forming Machine
