    18T Z Purlin Roll Forming Machine 3mm Thickness C Channel Making Equipment

    15kw Hydraulic Cutting 3mm Thickness Purlin Roll Forming Machine With Automatic


    1. Description of C U Z Purlin Roll Forming Machine


    Our purlin machine driven by gearboxes, consists of decoiler, feeding and levelling device, punching system, pre-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system). Its special feature: Assemble with liner guide way to make machine change web size easily and smoothly, Produce standard products with yield strength up to 550Mpa,Long production line,no open mouth on final products, C/Z interchange only with 3 steps and within 5-15mins;Changing size fully automatically.Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision. Large range web size is 120-450mm and thickness up to 4.5mm, which used widely and would be the most popular model in the near future.


    2. Specifications of C U Z Purlin Roll Forming Machine


    Purlin Roll Forming Machine
    Machinable Material :A) Galvanized CoilThickness(MM): 1.5-3
    B) PPGI
    C) Carbon steel Coil
    Yield strength :250 - 550 Mpa
    Tensil stress :G350 Mpa-G550 Mpa
    Decoiler :Manual decoiler* Hydraulic decoiler (Optional)
    Punching system :Hydraulic punching station* Punching press (Optional)
    Forming station :18-20 stations
    Main machine motor brand :Shanghai Dedong (Sino-Germany Brand)* Siemens (Optional)
    Driving system :Chain drive* Gearbox drive (Optional)
    Machine structure:Wall panel station* Forged Iron station (Optional)
    Forming speed :10-20 (M/MIN)* Or according to your profile drawings
    Rollers’ material :Steel #45* GCr 15(Optional)
    Cutting system :Pre-cutting* Post- universal cutting (Optional)
    Frequency changer brand :Yaskawa* Siemens (Optional)
    PLC brand :Panasonic* Siemens (Optional)
    Power supply :380V 50Hz* Or according to your requirment
    Machine color :Industrial blue* Or according to your requirment

    3. Profiles of ​C U Z Purlin Roll Forming Machine


    18T Z Purlin Roll Forming Machine 3mm Thickness C Channel Making Equipment


    4.​ Flow chart of Purlin Roll Forming Machine


    Decoiling – Feeding - Flattening — Lip forming - Flange forming - Angle forming – Straightening - Punching - Cutting – Stacking


    18T Z Purlin Roll Forming Machine 3mm Thickness C Channel Making Equipment

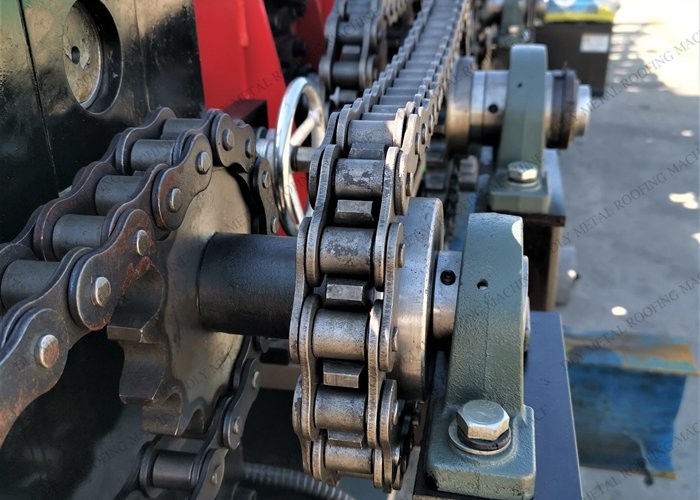

    5. Detail photos of ​C U Z Purlin Roll Forming Machine


    18T Z Purlin Roll Forming Machine 3mm Thickness C Channel Making Equipment18T Z Purlin Roll Forming Machine 3mm Thickness C Channel Making Equipment18T Z Purlin Roll Forming Machine 3mm Thickness C Channel Making Equipment18T Z Purlin Roll Forming Machine 3mm Thickness C Channel Making Equipment
