    380V U Purlin Roll Forming Machine Hydraulic Cutting Purlin Roll Former

    Ask Lasest Price
    Brand Name : DLY
    Model Number : C U Z machine
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    380V U Purlin Roll Forming Machine Hydraulic Cutting Purlin Roll Former

    380V Automatic C U Z Purlin Roll Forming Machine With Hydraulic Cutting


    1. Description of C U Z Purlin Roll Forming Machine

    • This machine is the industry's best value in a Rapid Inter-changeable CZ Purlin Roll forming System.
    • Capable of producing the standard industry range of Cee, Zee, U shapes 80-300mm.
    • Providing programmable modular hydraulic punching and cutting.
    • Rapid C/Z profiles and its size changeover times under 5 minutes.
    • European quality control, machine surface adopts podwer coating, coating before assembly.
    • Delivery capacity 220-300sets per year, the largest and most professional manufacturer in China.

    2. Specifications of C U Z Purlin Roll Forming Machine


    ProfileWebFlangeLipThickness
    C80-300mm40-80mm10-25mm1.2-3.2mm
    Z120-300mm40-80mm10-25mm1.2-3.2mm
    Yield strength195Mpa235Mpa345Mpa550Mpa
    Thickness1.2mm-3.2mm1.2mm-3.0mm1.2mm-2.7mm1.2mm-2.5mm
    Slotted holeRound hole
    14x26mm(HOR.)D14mm
    16x26mm(HOR.)D16mm

    Equipment seriesPost-punch Post-cut
    Phase/voltage/frequencyCustomize
    Driven typeServo-motor
    CZ inter-change typeManual
    Size inter-change typeElectric
    Pre-cutterOptional
    Flange punchOptional
    DecoilerManual decoiler
    Hydraulic decoiler (Optional)
    Production capacityMaximum 35m/min
    Length tolerance±1.5mm

    3. Profiles of ​C U Z Purlin Roll Forming Machine


    380V U Purlin Roll Forming Machine Hydraulic Cutting Purlin Roll Former

    4.​ FAQ

    ● What is your machine warranty?

    some quick-wear parts will be container together with machine.

    if some parts damaged within one year, we will send new one to you for free, just freight up to you.


    ● Is it complicated to operate the machine?

    It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.


    ● How many different profile roofing one machine can produce?

    One machine can produce one or two different profiles.

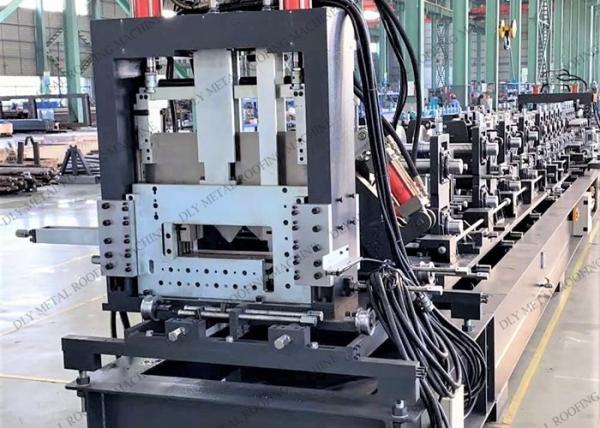

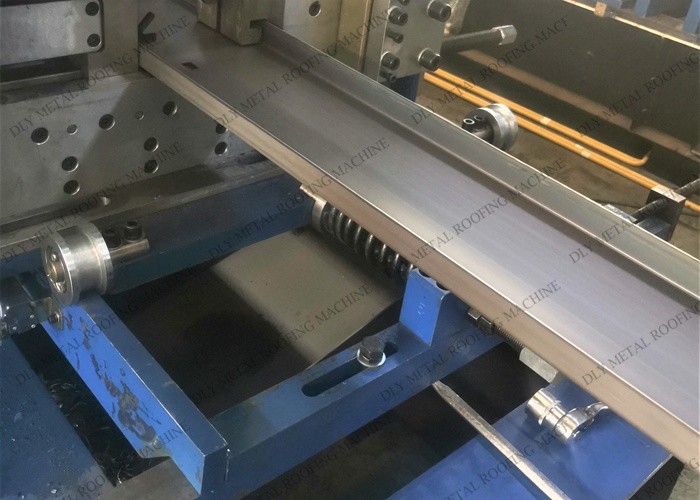

    5. Detail photos of ​C U Z Purlin Roll Forming Machine


    380V U Purlin Roll Forming Machine Hydraulic Cutting Purlin Roll Former380V U Purlin Roll Forming Machine Hydraulic Cutting Purlin Roll Former

    380V U Purlin Roll Forming Machine Hydraulic Cutting Purlin Roll Former380V U Purlin Roll Forming Machine Hydraulic Cutting Purlin Roll Former
