50Hz Double Layer Roll Forming Machine 7500Mm Metal Roofing Forming Equipment

Ask Lasest Price
Brand Name :	DLY
Model Number :	double layer machine
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	30sets/month
Delivery Time :	40 days

Add to Cart

Product Details
Company Profile

50Hz Double Layer Roll Forming Machine 7500Mm Metal Roofing Forming Equipment

380V Automatic Metal Roofing Double Layer Forming Machine With PLC

1. Brief introduction of Double Layer Forming Machine

o Thickness of material : 0.3 mm ~ 0.8 mm
o Forming speed: 15~25 m/min.
o Hydraulic driving and cutting system.
o Hard chrome coated rollers.

Advantages
o Customized profile and suggestions.
o Material handling solutions.
o Anti-capillary grooves, Embossing, Logo Marking.
o Full safety protection with cover guard, emergency switches, mistake proofing program.

2. Specifications of Double Layer Forming Machine

Raw Material	feeding width	mm	up layer 1000
	feeding width	mm	down layer 1000
	effective width	mm	up layer 820
	effective width	mm	down layer 836
	thickness	mm	0.3-0.8
Main Roll Forming Machine	roller material		45# steel plated with chrome
	diameter of shaft	mm	70
	roller station	steps	up layer 16
	roller station	steps	down layer 16
Main Configuration	main motor power	kw	5.5
	hydraulic station power	Kw	4
	control system	PLC brand	Mitsubishi

3. Customer Feedback of Double Layer Forming Machine

1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD150 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

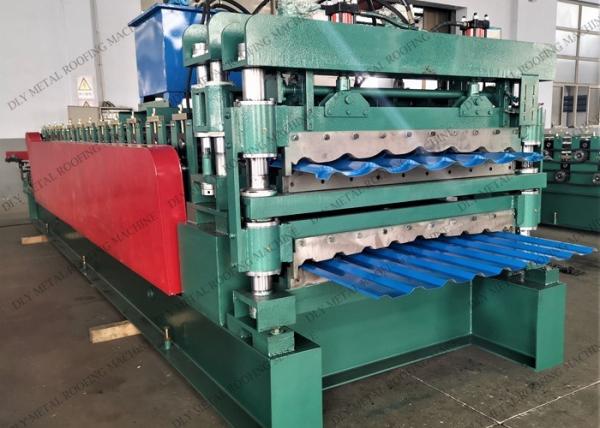

4. details photos of Double Layer Forming Machine

50Hz Double Layer Roll Forming Machine 7500Mm Metal Roofing Forming Equipment
