    3Kw Stud And Track Roll Forming Machine 0.8m Metal Stud Making Machine

    Ask Lasest Price
    Brand Name : DLY
    Model Number : Stud And Track Lines
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    3Kw Stud And Track Roll Forming Machine 0.8m Metal Stud Making Machine

    Stud And Track Lines Light Weight Keel Roll Forming Machine With 25m/Minute Speed


    1. Specification of Keel Roll Forming Machine


    1
    Suitable to process
    Color alu-zinc steel strips
    2
    Roller
    12Rows plus leveling device
    3
    Dimensions
    5.4*1*1.5m
    4
    Motor Power
    3Kw
    5
    Pump Station Motor
    3Kw.Lichao Brand
    6
    Thickness of the plate
    0.3-0.8mm
    7
    Productivity
    10-15m/min
    8
    Material of the cutting blade
    Cr12,Quenched treatment 58℃-60℃
    9
    Diameter of the roller
    Φ50mm
    10
    Weight
    About 2600kgs
    11
    Main structure of the machine
    Square steel frame
    12
    Processing precision
    Within 1.0mm
    13
    Side panel of machine
    16mm
    14
    Chain Wheel and Cycle Chain
    1 Inch
    15
    Voltage
    380V 50Hz 3phases or as customer's need
    16
    Control system
    PLC control (Delta)
    17
    Frequency system
    Delta
    18
    Drive mode
    Gear driver
    19
    Touch screen
    Delta
    20
    Rolling materials
    45# forging steel with chromium plate
    21
    Length Tolerance
    ±2mm


    2. description of Keel Roll Forming Machine


    Light Gauge Stud & Track:

    • Material thickness: 20 to 26 Gauge

    • Single or Double Arm Uncoiler with optional Coil Car

    • Optional Vertical Uncoiler
    • Web size: 1-5/8" to 6"
    • Flange/Leg height (Stud): 1-1/4 to 2-1/2"
    • Flange /Leg height (Track): 1-1/4 to 2-1/2"

    • Lip dimension: 1/4 to 1/2"


    Smaller and larger part sizes can be added upon request

    • High precision Roller Die Tooling designed inhouse

    • Automatic or Manual Width Adjustment

    • Optional Auto-Gauge adjustment
    • Post-punched hole sizes to suit customer specifications
    • Cut off with inserts for different sizes and profiles
    • Indented screw or rivet holes plus available upon request


    3.​ FAQ of of Keel Roll Forming Machine


    ● What is your machine warranty?

    some quick-wear parts will be container together with machine.

    if some parts damaged within one year, we will send new one to you for free, just freight up to you.


    ● Is it complicated to operate the machine?

    It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.


    ● How many different profile roofing one machine can produce?

    One machine can produce one or two different profiles.

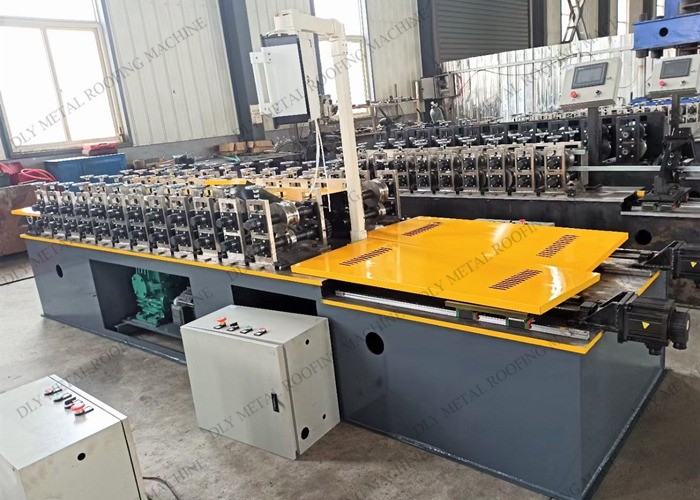

    4. details photos of Keel Roll Forming Machine


    3Kw Stud And Track Roll Forming Machine 0.8m Metal Stud Making Machine3Kw Stud And Track Roll Forming Machine 0.8m Metal Stud Making Machine3Kw Stud And Track Roll Forming Machine 0.8m Metal Stud Making Machine3Kw Stud And Track Roll Forming Machine 0.8m Metal Stud Making Machine
