50HZ Keel Roll Forming Machine 0.3mm Steel Stud Making Machine

    Buy cheap 50HZ Keel Roll Forming Machine 0.3mm Steel Stud Making Machine from wholesalers

    Buy cheap 50HZ Keel Roll Forming Machine 0.3mm Steel Stud Making Machine from wholesalers
    • Buy cheap 50HZ Keel Roll Forming Machine 0.3mm Steel Stud Making Machine from wholesalers

    50HZ Keel Roll Forming Machine 0.3mm Steel Stud Making Machine

    Ask Lasest Price
    Brand Name : DLY
    Model Number : C profile
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    50HZ Keel Roll Forming Machine 0.3mm Steel Stud Making Machine

    Metal Light Steel Keel Roll Forming Machine With Non-Stop Cutting


    1. Specification of Keel Roll Forming Machine


    No.ItemSpecifications
    1Coil Widthaccording to design
    2Diameter of shaft70mm
    3Forming Speed8-12meters/min
    4Middle plate16mm
    5Material of shaft45#steel with tempering
    6forming thickness0.6mm-1.0mm
    7material of rollers45#steel
    8Cutting typehydraulic -cutting
    9Main power4kw+4kw
    10Main frame350H steel
    11Control systemPLC
    12Brand of electrical partsDelta
    13Manual decoiler5 tons
    14Power3 Phase,380 Voltage,50Hz
    15Dimensions(L*W*H)About 6.5*1.2*1.2M
    16Weightabout 3 tons

    2. The main elements of Keel Roll Forming Machine


    • 3 ton manual vertical decoiler one set
    • feeding&leveling device one set
    • punching machine with mold one set
    • Roll forming system one set
    • Hydraulic cutting device with cutters
    • PLC control system
    • product receiving table one set

    3.​ FAQ of of Keel Roll Forming Machine


    ● What is your machine warranty?

    some quick-wear parts will be container together with machine.

    if some parts damaged within one year, we will send new one to you for free, just freight up to you.


    ● Is it complicated to operate the machine?

    It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.


    ● How many different profile roofing one machine can produce?

    One machine can produce one or two different profiles.

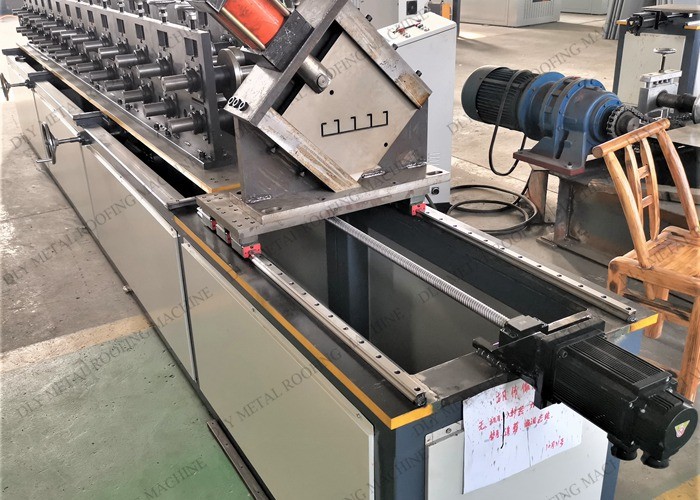

    4. details photos of Keel Roll Forming Machine


    50HZ Keel Roll Forming Machine 0.3mm Steel Stud Making Machine50HZ Keel Roll Forming Machine 0.3mm Steel Stud Making Machine50HZ Keel Roll Forming Machine 0.3mm Steel Stud Making Machine50HZ Keel Roll Forming Machine 0.3mm Steel Stud Making Machine
