4500kg U Track Roll Forming Machine Cr12 Stud And Track Equipment

    Buy cheap 4500kg U Track Roll Forming Machine Cr12 Stud And Track Equipment from wholesalers

    Buy cheap 4500kg U Track Roll Forming Machine Cr12 Stud And Track Equipment from wholesalers
    • Buy cheap 4500kg U Track Roll Forming Machine Cr12 Stud And Track Equipment from wholesalers

    4500kg U Track Roll Forming Machine Cr12 Stud And Track Equipment

    Ask Lasest Price
    Brand Name : DLY
    Model Number : C profile
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    4500kg U Track Roll Forming Machine Cr12 Stud And Track Equipment

    C Profile Automatic Metal Keel Roll Forming Machine With Non-Stop Cutting


    1. Specification of Keel Roll Forming Machine


    Main Forming machineForming steps12 steps
    Shaft diameter40mm
    Machine standIndividual Arch Plate
    Machine framesteel plate welded
    roller materialCr12
    shaft material45# steel with quenching and tempering
    Work speedstandard: 20---25m/min; 45---60m/min
    TransportBy gear
    Power of main machine4kw
    Voltage380V-50HZ-3P(as required)
    Machine dimension5.5*0.8*1.5m
    Machine weightAbout 2.5T
    Machine colorYellow and blue(as required)

    Usage: In order to keep the product shape and precision, adopts welded sheet structure,

    motor reducer drive, chain transmission,roller was chromed which can keep the

    molding plate surface smooth and not easy to be marked when it is working

    Feature : Ensure stability , precision and lifetime.


    2. The main elements of Keel Roll Forming Machine


    • 3 ton manual vertical decoiler one set
    • feeding&leveling device one set
    • punching machine with mold one set
    • Roll forming system one set
    • Hydraulic cutting device with cutters
    • PLC control system
    • product receiving table one set

    3.​ FAQ of of Keel Roll Forming Machine


    ● What is your machine warranty?

    some quick-wear parts will be container together with machine.

    if some parts damaged within one year, we will send new one to you for free, just freight up to you.


    ● Is it complicated to operate the machine?

    It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.


    ● How many different profile roofing one machine can produce?

    One machine can produce one or two different profiles.

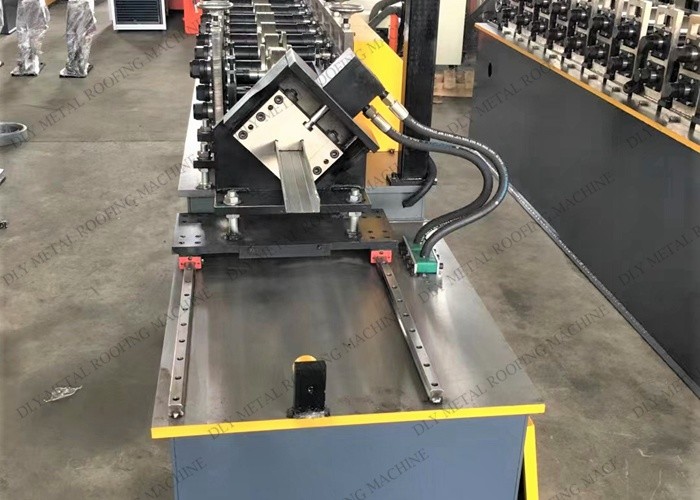

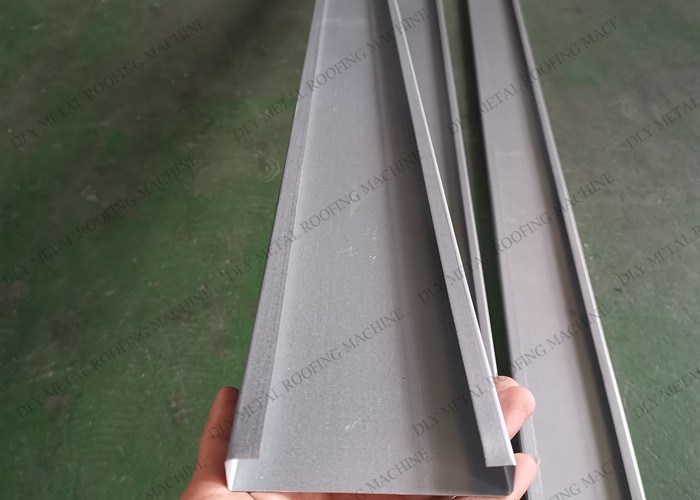

    4. details photos of Keel Roll Forming Machine


    4500kg U Track Roll Forming Machine Cr12 Stud And Track Equipment4500kg U Track Roll Forming Machine Cr12 Stud And Track Equipment4500kg U Track Roll Forming Machine Cr12 Stud And Track Equipment4500kg U Track Roll Forming Machine Cr12 Stud And Track Equipment
