SL12/16 Snap Lock Metal Roofing Machine 3PH Standing Seam Roll Former For Wall

    Buy cheap SL12/16 Snap Lock Metal Roofing Machine 3PH Standing Seam Roll Former For Wall from wholesalers

    Buy cheap SL12/16 Snap Lock Metal Roofing Machine 3PH Standing Seam Roll Former For Wall from wholesalers
    • Buy cheap SL12/16 Snap Lock Metal Roofing Machine 3PH Standing Seam Roll Former For Wall from wholesalers

    SL12/16 Snap Lock Metal Roofing Machine 3PH Standing Seam Roll Former For Wall

    Ask Lasest Price
    Brand Name : DLY
    Model Number : Snap Lock Metal Roofing Machine
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    SL12/16 Snap Lock Metal Roofing Machine 3PH Standing Seam Roll Former For Wall

    Automatic Click Steel Snap Lock Metal Roofing Machine For Wall


    1. Description of Snap Lock Metal Roofing Machine


    snap lock roof panel machine has led the industry for many years with its innovative Snap-Loc product. Snap-Loc is the original metal roof for residential buildings.The benefits offered by today’s metal roofs allow homeowners and business owners to upgrade their roofs with products of lasting value.


    2. Specifications of Snap Lock Metal Roofing Machine


    ItemParameter
    MaterialType600mm Aluminum magnesium manganese
    Thickness0.7-1.2mm
    Machine materialActive shaftNo.45 steel tempered,φ70mm diameter,HRC treading and polishing
    RollerNo.45 steel chorme plated,heat treating,polishing,CNC machining two times Roughing and finishing
    Cutting bladeCr12 quenched,polishing two times
    Power requirementType380V/3PH/50HZCustomized
    Main motorAbout 7.5Kw Simens
    HydraulicAbout 4Kw,china famous brand:shanghai li chao
    SpeedForming speedSingle 8-15mm/min,speed can be adjusted by transducer
    Manual decoilerTypeManual decoilerExpand by hand
    Max capacity5 tons
    Suitable OD600mm
    Suitable ID508mm
    Max width600mm
    Forming stand13steps roller formingL*W*H:6.2*1.4*1.3m
    Type of cuttingLength-set cutting

    Guiding pipe

    Hydraulic cutter

    Eac side one Oil cylinder

    Main body:steel panel welding

    Transmission1.0inch driveGB stander
    Control systemDelta PLC& tansducerTouch screen (delta)
    Side middle plate18mm thickness steelGB stander
    Main body Frame400 H steel,Gb stander
    Auto pre-cutting deviceFull automatic,setting any length in PLC,Hydraulic cutting system
    Film guard stand1 piece
    Machine colorMain body is sky blue color,cutting blade pillar is orange
    Machine operating programTouch scree Delta

    3. Customer Feedback

    Our Snap Lock Metal Roofing Machine have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!


    SL12/16 Snap Lock Metal Roofing Machine 3PH Standing Seam Roll Former For Wall

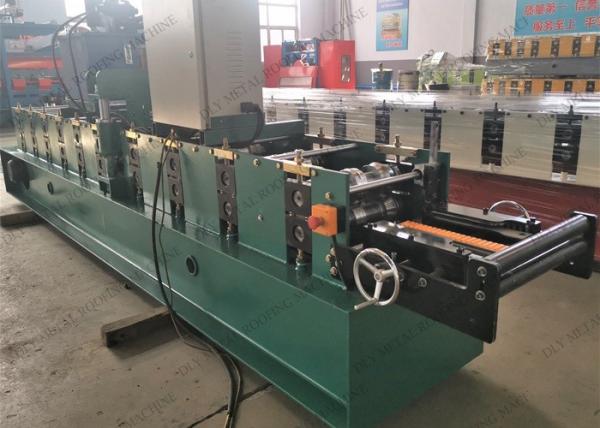

    4. Detail pictures of Snap Lock Metal Roofing Machine


    SL12/16 Snap Lock Metal Roofing Machine 3PH Standing Seam Roll Former For WallSL12/16 Snap Lock Metal Roofing Machine 3PH Standing Seam Roll Former For WallSL12/16 Snap Lock Metal Roofing Machine 3PH Standing Seam Roll Former For WallSL12/16 Snap Lock Metal Roofing Machine 3PH Standing Seam Roll Former For Wall
