    TR37 Trapezoidal Roofing Forming Machine 380V Metal Roll Forming Machine

    Ask Lasest Price
    Brand Name : DLY
    Model Number : TR37
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    TR37 Trapezoidal Roofing Forming Machine 380V Metal Roll Forming Machine

    TR37 Trapezoidal Metal Roofing Roll Forming Machine 380V With Hydraulic Cutting

    1. Description of Roofing Forming Machine

    Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.

    2. Specifications of Roofing Forming Machine


    Suitable materialPPGI or galvanized coil
    Suitable material

    Raw material width:1000 and 1250mm

    thickness 0.3-0.8mm

    Productivity12-15m/min
    Roller material45# after heating treatment and with chromium
    Spacer, balance bar, screwAll do chromium to ensure beautiful appearance
    Diameter of active shaftΦ75mm
    Main machine structure400H
    Wall plate20mm
    Power3KW main motor,cycloidal reducer work stable and no noise
    ShearHydraulic shear, blade material CR12
    Transmission1’’ gear chain
    Control system

    Delta PLC computer control system with Chrizi inverter to ensure precision; Winwen color touch screen.

    Program is made by English, working mode: automatic and manual

    Hydraulic system3kw hydraulic motor
    VoltageAC380V/50HZ/3 phase or AC220-240V/60HZ/3 phase or AC220-240V/60HZ/single phase
    Upgrade manual decoilerMax loading weight:5000kgs,Inner Diameter:508-610mm,max coil width:1250mm
    Set off tableone pcs, 6 step roller, each is 3000mm long
    Size(length*width*height)9000*1500*2500MM
    Weight7500kgs
    ComponentUpgrade manual decoiler-guide feeding-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table

    3. Feathers of Roofing Forming Machine
    • We Will use the rubber roller at leveling part to protect the coil surface.
    • We will add two more gears for feeding coil smoothly.
    • For the roller, we will do the chroming for long time use and beautiful.
    • For cutting, we use 4 pillar post cutting system to make sure the cutter can use long time.
    • Use special special design of cutting system for cutting fast and the cutter can use long time.
    • Good quality hydraulic jacks.
    • Use strong thickness frame and holder.
    • We will give remoter for control machine easily.

    4. Production Flow of Roofing Forming Machine


    Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products

    TR37 Trapezoidal Roofing Forming Machine 380V Metal Roll Forming Machine

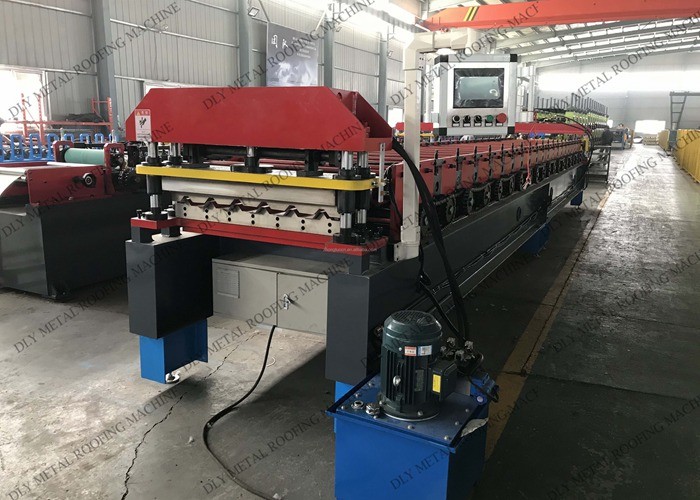

    5. Details of Our Roofing Forming Machine

    TR37 Trapezoidal Roofing Forming Machine 380V Metal Roll Forming MachineTR37 Trapezoidal Roofing Forming Machine 380V Metal Roll Forming MachineTR37 Trapezoidal Roofing Forming Machine 380V Metal Roll Forming MachineTR37 Trapezoidal Roofing Forming Machine 380V Metal Roll Forming Machine
