    15kw Cz Purlin Roll Forming Machine Automatic 380v

    15kw Automatic C Purlin Roll Former 380V C Z Purlin Roll Forming Machine Price


    1. Description of C U Z Purlin Roll Forming Machine


    Our purlin machine driven by gearboxes, consists of decoiler, feeding and levelling device, punching system, pre-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system). Its special feature: Assemble with liner guide way to make machine change web size easily and smoothly, Produce standard products with yield strength up to 550Mpa,Long production line,no open mouth on final products, C/Z interchange only with 3 steps and within 5-15mins;Changing size fully automatically. Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision. Large range web size is 120-450mm and thickness up to 4.5mm, which used widely and would be the most popular model in the near future.


    2. Specifications of C U Z Purlin Roll Forming Machine


    Part detailsItem NameSpecification
    MaterialRaw materialGalvanized steel
    Thickness1.5-3 mm
    MachineRoller station18
    Shaft diameter80 mm
    Shaft material45# steel with 0.05mm chrome
    Roller material hardness 30-40 HRCBearing steel
    Machine sizeAbout 10×1.7×1.7 m
    Machine weightAbout 9 ton
    Machine colorAs customer' request
    Working speed10-30 m/min
    CutterHardness50-65 HRC
    Cutting tolerance± 1 mm
    MaterialCr 12
    OperateHydraulic cutting
    PowerDriving wayChain 1.5*2 inch
    Main power22 kw
    Pump power5.5 kw
    Voltage

    380v/50HZ,3P or customize

    as customer' request

    Control systemPLC brandDelta made in Twaiwan
    ScreenTouchable screen
    LanguageChinese and English or add language as customer need
    DecoilerOperationManual
    Weight capicatity3 ton
    PriceFree as gift
    Receiving tableOperationManual
    Length3 m
    PriceFree as gift

    3. Profiles of ​C U Z Purlin Roll Forming Machine

    15kw Cz Purlin Roll Forming Machine Automatic 380v


    4.​ Advantages of ​C U Z Purlin Roll Forming Machine

    • 【Machine Long Lifer】Rollers are made from Cr12 mould steel being quenched treatment, HRC58-60, CNC machine tooled to increase rollers precision.
    • 【High Efficiency】15-18m per minute. Produce 7000m per shift for 8 hours one day.
    • 【High Preision】Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
    • 【Automatic & Easy Operate】Safe and easy to operate with Mitsubishi PLC touch screen operating system. Friendly man-machine interaction.
    • 【Excellent Services】Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime services for our machines.

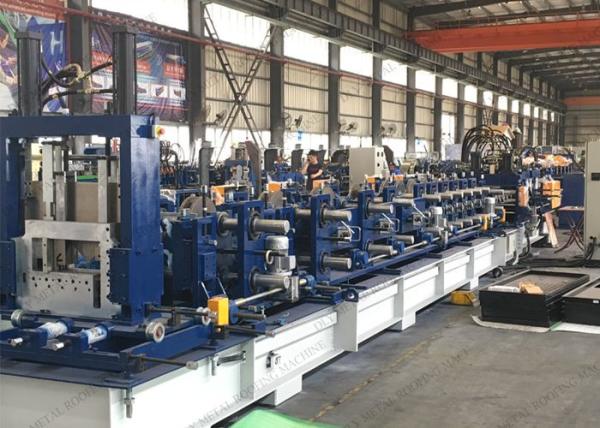

    5. Detail photos of ​C U Z Purlin Roll Forming Machine


    15kw Cz Purlin Roll Forming Machine Automatic 380v15kw Cz Purlin Roll Forming Machine Automatic 380v

    15kw Cz Purlin Roll Forming Machine Automatic 380v15kw Cz Purlin Roll Forming Machine Automatic 380v
