    Sinus Corrugated Steel Panel Roll Former 7500kg Iron Sheet Making Machine

    1250mm Sinus 10T Corrugated Machine With Hydraulic Cutting


    1. Description of Corrugated Roofing Machine

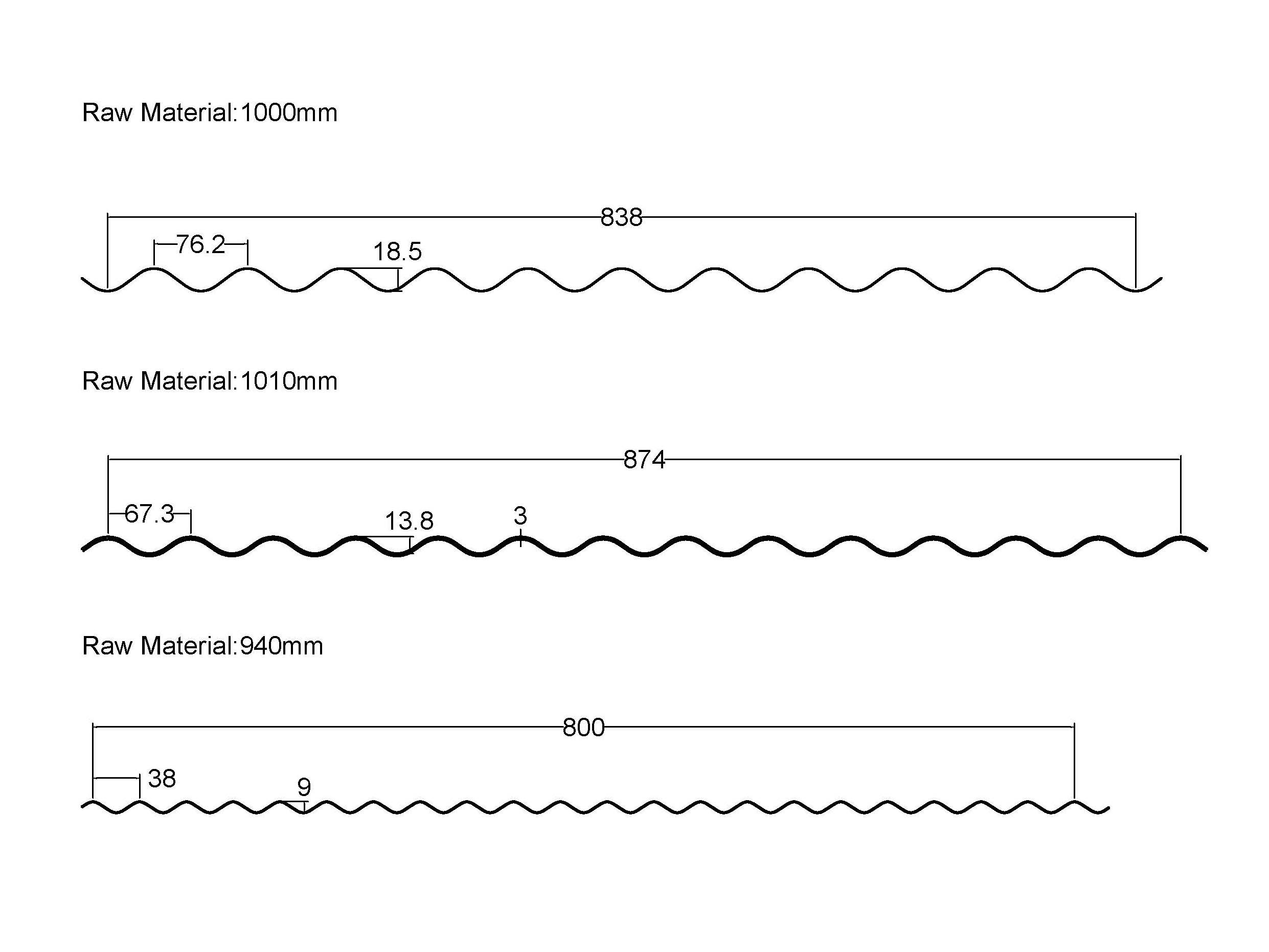

    Now our corrugated sheet roll former have been exported to many countries, the most important is that all you need can be customized. There are different popular width of coils in different market, so there are different width of corrugated sheets.


    If you have coil width is 1250mm, the width of corrugated sheet will be 1064mm.

    If you have coil width is 1200mm, the width of corrugated sheet will be 988mm

    If you have coil width is 1000mm, the width of corrugated sheet will be 836mm

    If you have coil width is 914mm, the width of corrugated sheet will be 762mm


    2. Specifications of Corrugated Roofing Machine


    name of products
    corrugated roof sheet making machine
    1
    Suitable to process
    Color steel plate, galvanized sheet, aluminum coils and etc.
    2
    Width of the feeding material
    1000mm or make as customer need
    3
    Roller station
    9-11 rows
    4
    Thickness of feeding material
    0.3-0.8mm
    5
    Productivity
    10-18m/min
    6
    Rollers' material
    45# steel
    7
    Diameter of shaft
    70mm
    8
    Voltage
    380V 50Hz 3phases
    9
    Wall thickness of main forming machine
    20mm steel plate
    10
    Main forming machine body
    400mm H steel
    11
    Motor power
    3+3kw
    12
    Size
    5500*1500*1400mm
    13
    Weight
    About 10T
    14
    Custom
    According to customer's requirements

    3. workflow of Corrugated Roofing Machine

    Manual decoiler——Feeding——Roll forming——Hydraulic stamp and cutting——Output table


    Sinus Corrugated Steel Panel Roll Former 7500kg Iron Sheet Making Machine


    4.​ Service of our Corrugated Roofing Machine

    • Free technical support and free accessories supply.
    • Engineer available to service machinery overseas.
    • One year warranty is provided.
    • Long life technical guidance for free.
    • We always offer technical support, quick response, all your inquire will be replied in 24 hours.

    5. details of Corrugated Roofing Machine


    Sinus Corrugated Steel Panel Roll Former 7500kg Iron Sheet Making MachineSinus Corrugated Steel Panel Roll Former 7500kg Iron Sheet Making MachineSinus Corrugated Steel Panel Roll Former 7500kg Iron Sheet Making MachineSinus Corrugated Steel Panel Roll Former 7500kg Iron Sheet Making Machine
