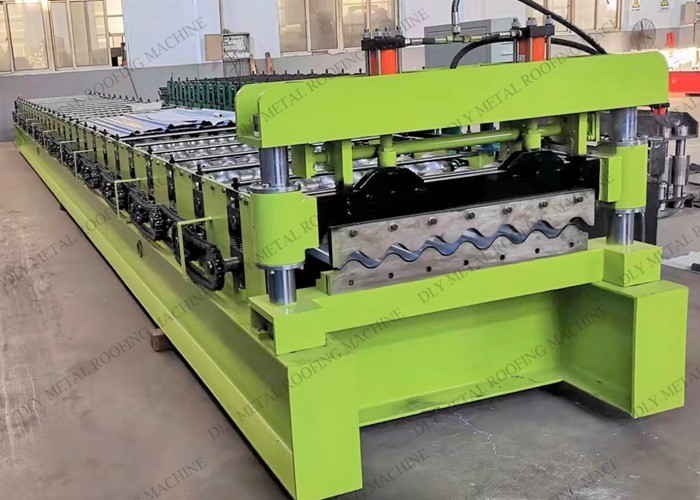

    Hydraulic Cutting 3P Corrugated Roofing Machine 6000mm Roof Tile Roll Former

    Automatic 380V Hydraulic Cutting Corrugated Roofing Machine With Sinus Profile


    1. Description of Corrugated Roofing Machine

    Corrugated Roofing Machine was used for corrugate metal sheet to different profiles, then these profiles can be used as roofing, wall, fence, light steel house and etc., our roll forming machine adopt PLC automatic control system, only need one person to operate.

    this profile is very popular used for roofing, every month have this profile machine in production.

    Our advantage is we have professional design team, we take EU machine quality as our machine standard. We pay attention to every machine details and components, so the quality of our machines has been recognized by our customers and peers.


    2. Specifications of Corrugated Roofing Machine


    Part detailsItem NameSpecification
    Manual uncoilercarrying capacity3-5 tons
    StypeManual
    Raw coilCoil materialsteel
    Coil thickness0.3-0.8 mm
    Machine bodyRoller station15 station
    Roller material45# steel
    Shaft material45# steel
    Shaft diameter55 mm
    Machine weightAbout 4.5 tons
    Machine size4.5 *1.3*1.4 m
    Speed0-9 m/min
    CutterOperateHydraulic cutting
    Blade materialCr12
    PowerOperateChain transmission
    Chain size1 inch chain
    Control systemPLC brandTaiwan delta
    Motor power5.5 kw
    Hydraulic pump power3 kw
    Voltage380V 50Hz 3phase
    Machine colorAs ur need
    Machine languageChinese and English


    3. workflow of Corrugated Roofing Machine


    Manual decoiler——Feeding——Roll forming——Hydraulic stamp and cutting——Output table


    Hydraulic Cutting 3P Corrugated Roofing Machine 6000mm Roof Tile Roll Former


    4.​ FAQ

    ● What is your machine warranty?

    some quick-wear parts will be container together with machine.

    if some parts damaged within one year, we will send new one to you for free, just freight up to you.


    ● Is it complicated to operate the machine?

    It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.


    ● How many different profile roofing one machine can produce?

    One machine can produce one or two different profiles.


    5. details of Corrugated Roofing Machine


    Hydraulic Cutting 3P Corrugated Roofing Machine 6000mm Roof Tile Roll FormerHydraulic Cutting 3P Corrugated Roofing Machine 6000mm Roof Tile Roll FormerHydraulic Cutting 3P Corrugated Roofing Machine 6000mm Roof Tile Roll FormerHydraulic Cutting 3P Corrugated Roofing Machine 6000mm Roof Tile Roll Former
