    Hydraulic Cutting Roofing Forming Machine Cr12 6m Metal Sheet Making Machine

    TR20 Trapezoidal Metal Roofing Roll Forming Machine 380V With PLC Automatic

    1. Description of Roofing Forming Machine

    Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.

    2. Specifications of Roofing Forming Machine


    1.Suitable materialColor steel sheet , galvanized steel sheet,aluminum sheet
    2.Installation Dimension (L*W*H):6.5m*1.5m*1.4m(depend on design)
    3.Main motor power3KW ~4KW with Cycloidal reducer
    4.Hydraulic station power3KW ~4KW
    5. Hydraulic oil pumpCB-E 310
    6.Thickness of material0.2mm~0.8mm
    7.Diameter of principal axisΦ70-90mm
    8.Material expand width1000,1200,1250mm
    9.Electric tension380V 3phase 50HZ or as the customer's requirements
    10.Material of rollerHigh grade 45# forged steel plated with hard chrome plating
    11.Controlling systemPLC
    12.Processing speed3-6m/min
    13.Processing precision within1.00mm (depend on design)
    14.Material of cutting bladeCr12 mould steel with quenched treatment
    15.Kind of drive0.6 inch chain link bearing model 6210
    16.Roller station8-20 Rollers
    17.Roller materialhigh grade 45#steel; Cr12 quenching

    3. Feathers of Roofing Forming Machine

    • We Will use the rubber roller at leveling part to protect the coil surface.
    • We will add two more gears for feeding coil smoothly.
    • For the roller, we will do the chroming for long time use and beautiful.
    • For cutting, we use 4 pillar post cutting system to make sure the cutter can use long time.
    • Use special special design of cutting system for cutting fast and the cutter can use long time.
    • Good quality hydraulic jacks.
    • Use strong thickness frame and holder.
    • We will give remoter for control machine easily.

    4. Production Flow of Roofing Forming Machine


    Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products

    Hydraulic Cutting Roofing Forming Machine Cr12 6m Metal Sheet Making Machine

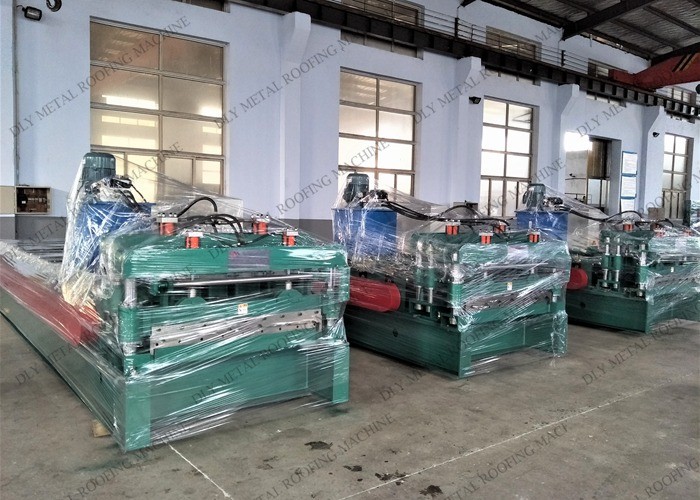

    5. Details of Our Roofing Forming Machine

    Hydraulic Cutting Roofing Forming Machine Cr12 6m Metal Sheet Making MachineHydraulic Cutting Roofing Forming Machine Cr12 6m Metal Sheet Making MachineHydraulic Cutting Roofing Forming Machine Cr12 6m Metal Sheet Making MachineHydraulic Cutting Roofing Forming Machine Cr12 6m Metal Sheet Making Machine
