7.8T Metal Sheet Roof Roll Forming Machine 5.5kw Standing Seam Roller

    Buy cheap 7.8T Metal Sheet Roof Roll Forming Machine 5.5kw Standing Seam Roller from wholesalers

    Buy cheap 7.8T Metal Sheet Roof Roll Forming Machine 5.5kw Standing Seam Roller from wholesalers
    • Buy cheap 7.8T Metal Sheet Roof Roll Forming Machine 5.5kw Standing Seam Roller from wholesalers

    7.8T Metal Sheet Roof Roll Forming Machine 5.5kw Standing Seam Roller

    Ask Lasest Price
    Brand Name : DLY
    Model Number : TR40
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

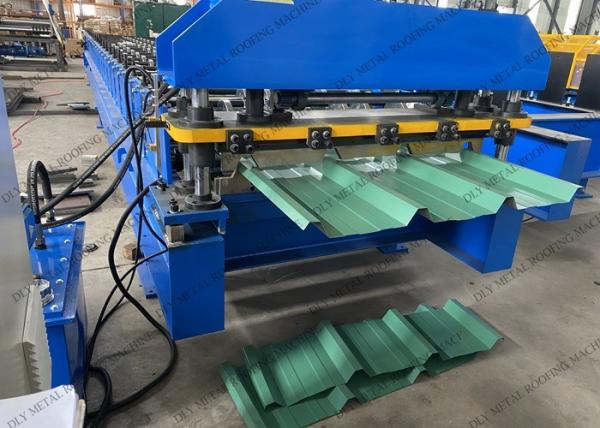

    7.8T Metal Sheet Roof Roll Forming Machine 5.5kw Standing Seam Roller

    TR40 Trapezoidal 380V Metal Roll Former With Hydraulic Cutting

    1. Description of Roofing Forming Machine

    Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.

    2. Specifications of Roofing Forming Machine

    Applicable Industries
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    Condition
    New
    Type
    Tile Forming Machine
    Tile Type
    Colored Steel
    Use
    ROOF
    Production Capacity
    15 m/min
    Place of Origin
    China
    voltage
    380V 50Hz 3phases or as your requirement
    measurement
    8*1.2*1.3
    weight
    4500kg
    Warranty
    1 Year
    Key Selling Points
    Easy to Operate
    Rolling thinckness
    0.3-0.8mm
    Feeding width
    1220mm
    Machinery Test Report
    Provided
    Video outgoing-inspection
    Provided
    Core Components
    Bearing, Gear
    After-sales Service Provided
    Overseas Service Center
    Usage
    Steel Construction
    Raw material
    PPGI PPGL GI GL
    Cutting blade material
    Cr 12 High Grade Steel
    Main frame
    400H Steel
    Thickness
    0.4-0.8
    Control system
    PLC(imported Brand)
    Machine type
    Roll Forming Mahcine
    Material
    Color Steel Galvanized Plate
    Roller material
    45#steel Chrome Plated


    3. Feathers of Roofing Forming Machine

    • We Will use the rubber roller at leveling part to protect the coil surface.
    • We will add two more gears for feeding coil smoothly.
    • For the roller, we will do the chroming for long time use and beautiful.
    • For cutting, we use 4 pillar post cutting system to make sure the cutter can use long time.
    • Use special special design of cutting system for cutting fast and the cutter can use long time.
    • Good quality hydraulic jacks.
    • Use strong thickness frame and holder.
    • We will give remoter for control machine easily.

    4. Production Flow of Roofing Forming Machine

    Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products
    7.8T Metal Sheet Roof Roll Forming Machine 5.5kw Standing Seam Roller

    5. Details of Our Roofing Forming Machine

    7.8T Metal Sheet Roof Roll Forming Machine 5.5kw Standing Seam Roller7.8T Metal Sheet Roof Roll Forming Machine 5.5kw Standing Seam Roller7.8T Metal Sheet Roof Roll Forming Machine 5.5kw Standing Seam Roller
    7.8T Metal Sheet Roof Roll Forming Machine 5.5kw Standing Seam Roller
    Quality 7.8T Metal Sheet Roof Roll Forming Machine 5.5kw Standing Seam Roller for sale
