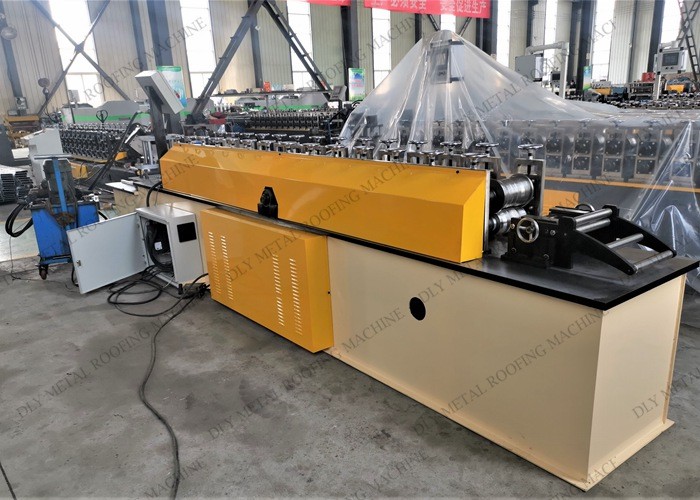

    PPGI Sheet Profiling Machine 380V Corrugated Roof Sheet Making Machine

    PPGI Hydraulic Cutting 380V Sheet Metal Profiling Machine For Shutter Door


    1. Description of Sheet Metal Profiling Machine


    Machines rolling shutter door for post, base and Roll-up door.

    A roller shutter, coiling door, roller door or sectional overhead door is a type of door or window shutter consisting of many horizontal slats (or sometimes bars or web systems) hinged together. The door is raised to open it and lowered to close it.

    rolling shutter door machine consist of 3 ton manual decoiler, forming machine with post cut, hydraulic staion, plc controller, run out table

    mitsubishi or siemens control system, Shutter Door Forming Machines automatically work.


    2. Specifications of Sheet Metal Profiling Machine


    1
    Suitable to process
    Color steel plate
    2
    Width of the plate
    914mm/1000mm/1200mm/1220mm/1250mm
    3
    Thickness of the plate
    0.3-0.8mm
    4
    De-coiler
    Manual one, can load 5 tons raw material
    5
    Rollers for forming
    16 rows
    6
    Diameter of the roller
    80mm
    7
    Rolling material
    Carbon Steel 45#
    8
    Main motor power
    5.5kw
    9
    Material of the cutting blade
    Cr12 mov
    10
    Hydraulic cutting power
    4kw
    11
    Processing precision
    Within 1.00mm
    12
    Control system
    Delta PLC control
    13
    Side panel of machine
    16mm
    14
    Main structure of the machine
    350 H steel
    15
    Weight
    About 3T
    16
    Dimensions
    3.5*1.2*1.5m
    17
    Voltage
    380V 50Hz 3phases(changeable as needs)
    18
    Certificate
    CE/ISO
    19
    Custom
    According to customer's requirements

    3. Work Follow​ of Sheet Metal Profiling Machine

    Our metal roofing machines have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!


    Decoiler→Feeding Guide Device→Rolling Forming System→Hydraulic Not Stop Cutting And Punching Device→ Exit Rack


    PPGI Sheet Profiling Machine 380V Corrugated Roof Sheet Making Machine


    4. details of Sheet Metal Profiling Machine


    PPGI Sheet Profiling Machine 380V Corrugated Roof Sheet Making MachinePPGI Sheet Profiling Machine 380V Corrugated Roof Sheet Making MachinePPGI Sheet Profiling Machine 380V Corrugated Roof Sheet Making MachinePPGI Sheet Profiling Machine 380V Corrugated Roof Sheet Making Machine
