380V Corrugated Sheet Roll Forming Machine 50HZ Sinus Metal Roofing Former

    Buy cheap 380V Corrugated Sheet Roll Forming Machine 50HZ Sinus Metal Roofing Former from wholesalers

    Buy cheap 380V Corrugated Sheet Roll Forming Machine 50HZ Sinus Metal Roofing Former from wholesalers
    • Buy cheap 380V Corrugated Sheet Roll Forming Machine 50HZ Sinus Metal Roofing Former from wholesalers

    380V Corrugated Sheet Roll Forming Machine 50HZ Sinus Metal Roofing Former

    Ask Lasest Price
    Brand Name : DLY
    Model Number : sinus
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

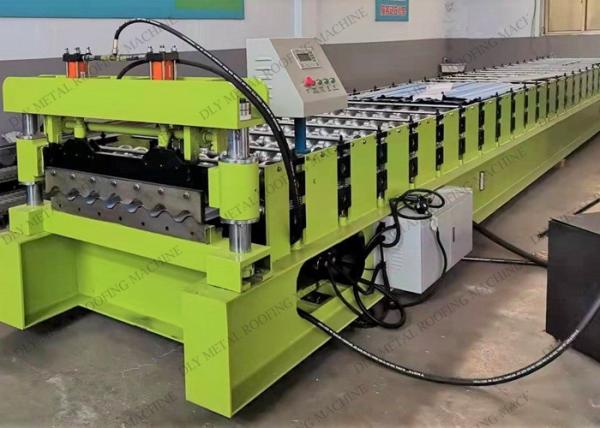

    380V Corrugated Sheet Roll Forming Machine 50HZ Sinus Metal Roofing Former

    380V Hydraulic Cutting Sinus Corrugated Roofing Machine With Plc Control


    1. Description of Corrugated Roofing Machine

    Corrugated Roofing Machine was used for corrugate metal sheet to different profiles, then these profiles can be used as roofing, wall, fence, light steel house and etc., our roll forming machine adopt PLC automatic control system, only need one person to operate.

    this profile is very popular used for roofing, every month have this profile machine in production.

    Our advantage is we have professional design team, we take EU machine quality as our machine standard. We pay attention to every machine details and components, so the quality of our machines has been recognized by our customers and peers.


    2. Specifications of Corrugated Roofing Machine


    Item
    Name
    Description
    1
    Feeding device
    with two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers.
    2
    Machine body
    350H steel welded
    3
    Machine frame
    18mm middle plate welded
    4
    Roller station
    16 stations
    5
    Roller material
    45# steel with quenched treatment and hard chroming
    6
    Shaft diameter
    80mm,solid
    7
    Shaft material
    45# steel with tempering treatment
    8
    Motor power
    5.5 kw
    9
    Speed
    0-20m/min
    10
    Transmission
    By Double chains
    11
    Voltage
    380V,50HZ,3PH

    3. workflow of Corrugated Roofing Machine


    Manual decoiler——Feeding——Roll forming——Hydraulic stamp and cutting——Output table


    380V Corrugated Sheet Roll Forming Machine 50HZ Sinus Metal Roofing Former


    4.​ FAQ

    ● What is your machine warranty?

    some quick-wear parts will be container together with machine.

    if some parts damaged within one year, we will send new one to you for free, just freight up to you.


    ● Is it complicated to operate the machine?

    It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.


    ● How many different profile roofing one machine can produce?

    One machine can produce one or two different profiles.


    5. details of Corrugated Roofing Machine

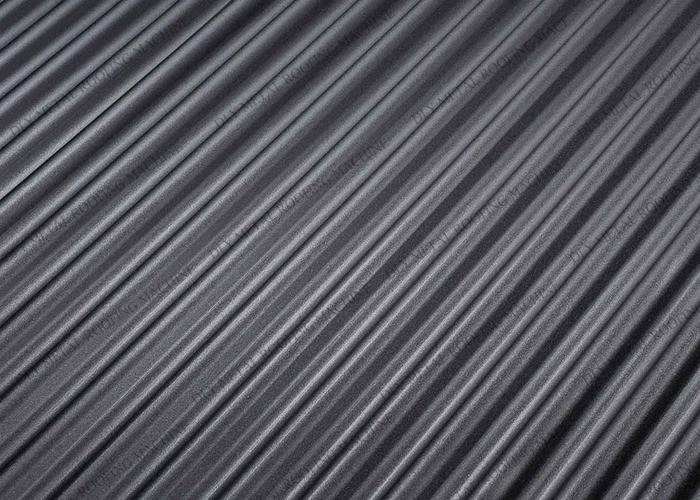

    380V Corrugated Sheet Roll Forming Machine 50HZ Sinus Metal Roofing Former380V Corrugated Sheet Roll Forming Machine 50HZ Sinus Metal Roofing Former380V Corrugated Sheet Roll Forming Machine 50HZ Sinus Metal Roofing Former380V Corrugated Sheet Roll Forming Machine 50HZ Sinus Metal Roofing Former
