    Hydraulic Cutting Cr12 Ridge Cap Machine 10KW Ridge Metal Roof Tile Equipment

    10KW PLC 380V Ridge Cap Forming Machine With 10m Speed


    1. description of Ridge Cap Forming Machine


    Ridge Cap Forming Machine makes different shape of color steel ridge cap sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 400mm, thickness range is from 0.3mm to 0.8mm. We adopt guide pin type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.


    2. Specifications of Ridge Cap Forming Machine


    No.ItemSpecifications
    1Coil Width1000mm
    2Diameter of shaft70mm
    3Forming Speed8-12meters/min
    4Middle plate16mm
    5Material of shaft45#steel with tempering
    6forming thickness0.2mm-0.6mm
    7material of rollers45#steel
    8Cutting typehydraulic -cutting
    9Main power4kw+3kw
    10Main frame300H steel
    11Control systemPLC
    12Brand of electrical partsDelta
    13Manual decoiler5 tons
    14Power3 Phase,380 Voltage,50Hz
    15Dimensions(L*W*H)About 6.5*1.2*1.2M
    16Weightabout 3 tons


    3. Guarantee of Ridge Cap Forming Machine


    1) Engineer will give free training lessons to labors in buyer's factory.
    2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD150 per day for engineer.
    3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
    4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

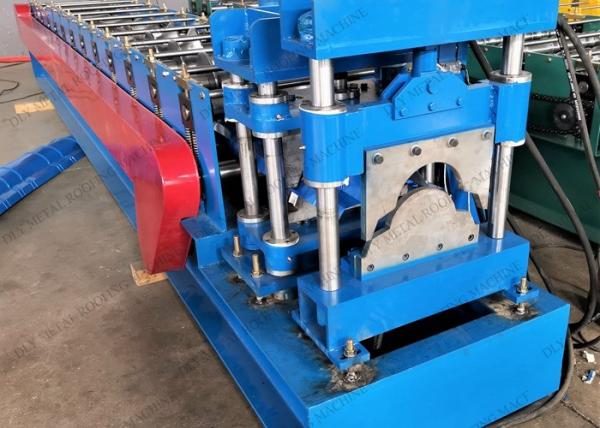

    4. details photos of Ridge Cap Forming Machine


    Hydraulic Cutting Cr12 Ridge Cap Machine 10KW Ridge Metal Roof Tile EquipmentHydraulic Cutting Cr12 Ridge Cap Machine 10KW Ridge Metal Roof Tile EquipmentHydraulic Cutting Cr12 Ridge Cap Machine 10KW Ridge Metal Roof Tile EquipmentHydraulic Cutting Cr12 Ridge Cap Machine 10KW Ridge Metal Roof Tile Equipment
