    15kw Purlin Rolling Machine Hydraulic Cutting C Section Roll Forming Machine

    15kw Hydraulic Cutting Automatic Purlin Roll Forming Machine With PLC


    1. Description of C U Z Purlin Roll Forming Machine


    Our purlin machine driven by gearboxes, consists of decoiler, feeding and levelling device, punching system, pre-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system). Its special feature: Assemble with liner guide way to make machine change web size easily and smoothly, Produce standard products with yield strength up to 550Mpa,Long production line,no open mouth on final products, C/Z interchange only with 3 steps and within 5-15mins;Changing size fully automatically. Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision. Large range web size is 120-450mm and thickness up to 4.5mm, which used widely and would be the most popular model in the near future.


    2. Specifications of C U Z Purlin Roll Forming Machine


    Machine Specifications
    WeightAbout 9000kgs
    SizeAbout 10m x 1.4m x 1.8m (length x width x height)
    ColorMain color: blue
    Warning color: yellow
    Suitable Raw Material
    MaterialGalvanized Steel Coils
    Thickness1.5-3.0mm
    Coil widthAccording to products size
    Yield strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stations14-16
    Diameter of forming rollers shafts75mm
    Roll Forming Speed10-15m/min
    Production Speed4-6m/min
    Forming rollers materialGcr15 mould steel, with quenched treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric power requirementMain motor power: 15kw
    Hydraulic unit motor power: 5.5kw
    Electric voltageAccording to customers requirement

    3. Profiles of ​C U Z Purlin Roll Forming Machine


    15kw Purlin Rolling Machine Hydraulic Cutting C Section Roll Forming Machine


    4.​ Advantages of ​C U Z Purlin Roll Forming Machine

    • 【Machine Long Lifer】Rollers are made from Cr12 mould steel being quenched treatment, HRC58-60, CNC machine tooled to increase rollers precision.
    • 【High Efficiency】15-18m per minute. Produce 7000m per shift for 8 hours one day.
    • 【High Preision】Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
    • 【Automatic & Easy Operate】Safe and easy to operate with Mitsubishi PLC touch screen operating system. Friendly man-machine interaction.
    • 【Excellent Services】Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime services for our machines.

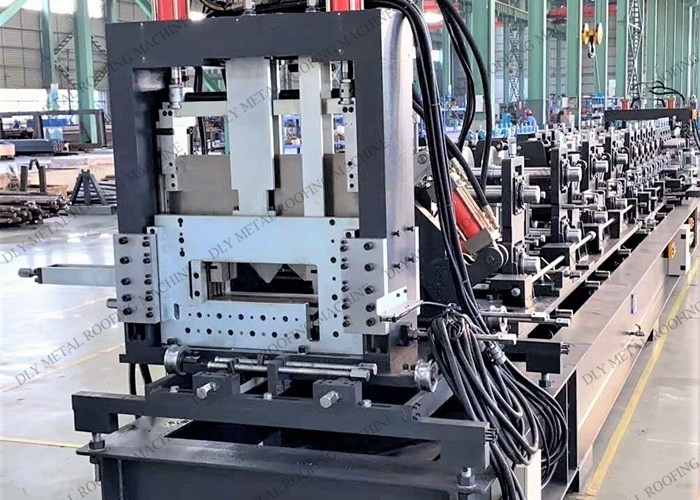

    5. Detail photos of ​C U Z Purlin Roll Forming Machine


    15kw Purlin Rolling Machine Hydraulic Cutting C Section Roll Forming Machine

    15kw Purlin Rolling Machine Hydraulic Cutting C Section Roll Forming Machine

    15kw Purlin Rolling Machine Hydraulic Cutting C Section Roll Forming Machine15kw Purlin Rolling Machine Hydraulic Cutting C Section Roll Forming Machine
