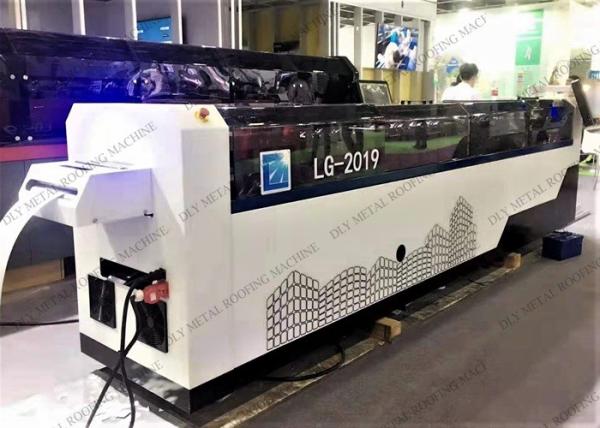

    Automatic 380v Purlin Roll Forming Machine Chain Transmission For C Z Shape

    Ask Lasest Price
    Brand Name : DLY
    Model Number : C/Z machine
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    Automatic 380v Purlin Roll Forming Machine Chain Transmission For C Z Shape

    Automatic Purlin Roll Forming Machine 380V C Z Purlin Roll Forming Machine


    1. Description of C U Z Purlin Roll Forming Machine

    • This machine is the industry's best value in a Rapid Inter-changeable CZ Purlin Roll forming System.
    • Capable of producing the standard industry range of Cee, Zee, U shapes 80-300mm.
    • Providing programmable modular hydraulic punching and cutting.
    • Rapid C/Z profiles and its size changeover times under 5 minutes.
    • European quality control, machine surface adopts podwer coating, coating before assembly.
    • Delivery capacity 220-300sets per year, the largest and most professional manufacturer in China.

    2. Specifications of C U Z Purlin Roll Forming Machine


    No.
    Item.
    Parameters.
    1.
    manual decoiler
    1.max coil width:550mm
    2.carrying capacity:5T
    2.
    main roll forming machine
    1.number of forming steps:12 steps with 2 leveling shafts
    2.shaft diameter:80mm
    3.transmission style:1.5inch chain
    4.main motor:11kw,8-12m/min
    3.
    cutting equipment
    1.cutting mode:hydraulic pillar cutting
    2.cutting length tolerance:1mm
    4.
    PLC control box
    operate manual:5.7inch touch screen
    5.
    hudraulic pump
    pump power:4kw
    6.
    out put table
    1.height:adjustable
    2.rollers:3 running rollers
    7.
    suitable material
    galvanized steel
    8.
    thickness
    1-3mm
    9.
    feeding width
    based on customer's request
    10.
    voltage
    380v50hz3h

    3. Profiles of ​C U Z Purlin Roll Forming Machine


    Automatic 380v Purlin Roll Forming Machine Chain Transmission For C Z Shape


    4.​ FAQ

    ● What is your machine warranty?

    some quick-wear parts will be container together with machine.

    if some parts damaged within one year, we will send new one to you for free, just freight up to you.


    ● Is it complicated to operate the machine?

    It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.


    ● How many different profile roofing one machine can produce?

    One machine can produce one or two different profiles.


    5. Detail photos of ​C U Z Purlin Roll Forming Machine


    Automatic 380v Purlin Roll Forming Machine Chain Transmission For C Z ShapeAutomatic 380v Purlin Roll Forming Machine Chain Transmission For C Z ShapeAutomatic 380v Purlin Roll Forming Machine Chain Transmission For C Z ShapeAutomatic 380v Purlin Roll Forming Machine Chain Transmission For C Z Shape
