    380v 50hz 4.5mm Cz Purlin Machine Driven By Gearboxes

    380V CZ Purlin Roll Forming Machine 50hz Z Purlin Roll Forming Machine


    1. Description of C U Z Purlin Roll Forming Machine


    Our purlin machine driven by gearboxes, consists of decoiler, feeding and levelling device, punching system, pre-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system). Its special feature: Assemble with liner guide way to make machine change web size easily and smoothly, Produce standard products with yield strength up to 550Mpa,Long production line,no open mouth on final products, C/Z interchange only with 3 steps and within 5-15mins;Changing size fully automatically. Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision. Large range web size is 120-450mm and thickness up to 4.5mm, which used widely and would be the most popular model in the near future.


    2. Specifications of C U Z Purlin Roll Forming Machine


    Item
    Parameters
    Coil Thickness(mm)
    1.5~3
    Max Speed(m/min)
    30
    Roll standard station (pcs)18
    Main Motor(KW)
    22kw (Hydraulic Motor )
    Main Shaft(mm)
    80mm
    Shaft materials40Cr
    Roller MaterialsGCr15
    Cutting Way
    Hydraulic Cutting (7.5KW)
    Cutting Blade Materials
    Cr12MoV
    Hole Punching
    3 sets
    Control System
    PLC control (Xinjie)
    Size Change
    PLC control / Press Button
    C Z Interchange
    PLC control / Reverse roll

    3. Profiles of ​C U Z Purlin Roll Forming Machine


    380v 50hz 4.5mm Cz Purlin Machine Driven By Gearboxes


    4.​ Advantages of ​C U Z Purlin Roll Forming Machine


    1.Produce different purlin size without changing rollers or spacers.

    2.No need changing cutter for different size.

    3.Easy operation, low maintenance cost

    4.Infinite sizing(any size within machine range),help to save material

    5.Optional Punch hole at any position of purlin web side and flange side

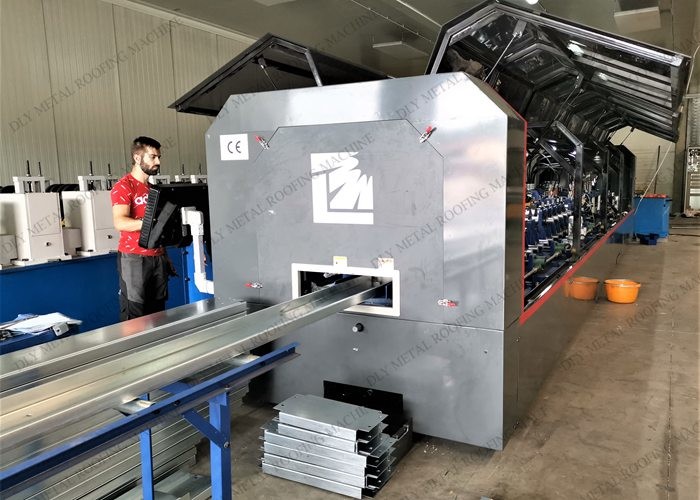

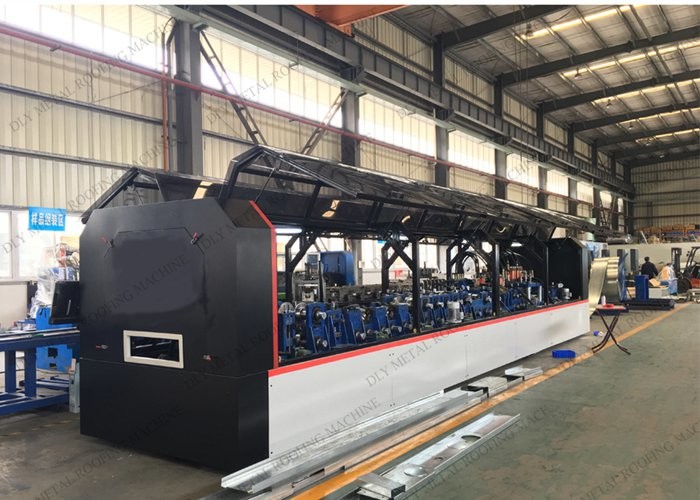

    5. Detail photos of ​C U Z Purlin Roll Forming Machine


    380v 50hz 4.5mm Cz Purlin Machine Driven By Gearboxes380v 50hz 4.5mm Cz Purlin Machine Driven By Gearboxes380v 50hz 4.5mm Cz Purlin Machine Driven By Gearboxes380v 50hz 4.5mm Cz Purlin Machine Driven By Gearboxes
