    10KW Metal Roof Ridge Cap Roll Forming Machine 1.25m Ridge Roof Tile Roll Former

    10KW Metal Automatic Ridge Cap Forming Machine


    1. description of Ridge Cap Forming Machine


    Roofing ridge forming machine to make ridge cap suitable for steel roofing sheet top.Your ridge can be designed here.

    here are some popular ridge machines for your reference, stop to cut machine, working speed about 12-15m/min, non stop to cut machine, working speed about 20m/min.

    standard ridge with flat leg, which need to cut the leg according to roofing trapezoidal sheets during installing / special ridge cutted according to roofing trapezoidal sheets, which can easily attached on roofing without futher cut during installing, which improve work efficiency greatly, and make great match to roofing sheets to water proof. our ridge cap forming machines include 3 ton manual decoiler, forming machine with post cut, PLC controller , hydraulic station, PLC controller ,run out table, mitsubishi or siemens control system allow you user friendly, you only put in the length and pieces , roll forming machine will automatically work.

    Besides, forming machines require little maintanance, you may lubricate the cut frame some times during daily productions.


    2. Specifications of Ridge Cap Forming Machine


    Machine Specifications
    WeightAbout 4000kgs
    SizeAbout 6m x 1.0m x 1.5m (length x width x height)
    ColorMain color: blue
    Warning color: yellow
    Suitable Raw Material
    MaterialPPGI and PPGL Coils
    Thickness0.3-0.8mm
    Coil width610mm
    Yield Strength235Mpa
    Main Technical Parameters
    Diameter of forming rollers shafts55mm
    Roll Forming Speed15-20m/min
    Forming rollers materialNo.45 steel, coated with chromed treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric Power requirementMain motor power: 4kw
    Hydraulic unit motor power: 2.2kw
    Electric voltageAccording to customer’s requirement

    3. Advantage ​of Ridge Cap Forming Machine

    • durable
    • withstand servere conditions.
    • low cost
    • low initial investment and low maintain cost
    • environment friendly
    • all the material can be recycled
    • flexible design
    • can relocate
    • install time considerably reduced
    • Operate easily , work automatically with PLC controller control.

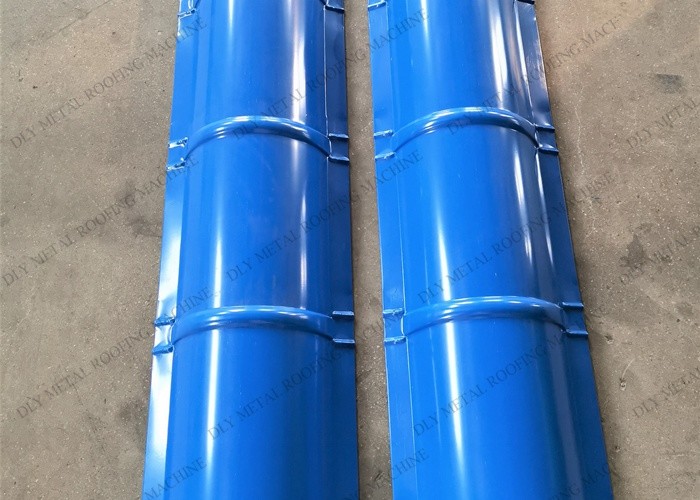

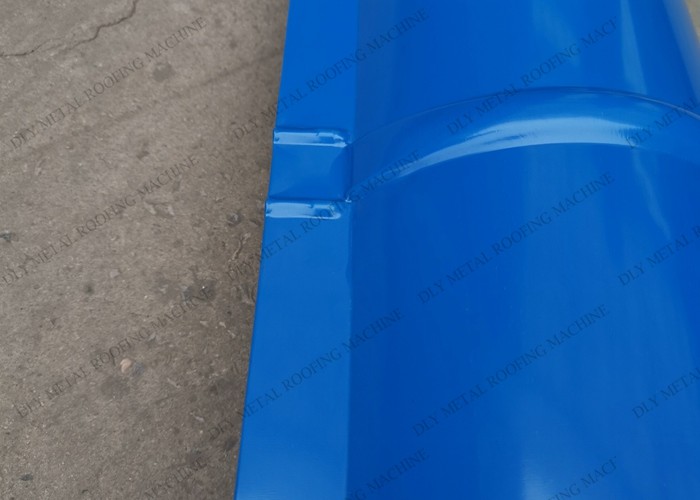

    4. details photos of Ridge Cap Forming Machine


    10KW Metal Roof Ridge Cap Roll Forming Machine 1.25m Ridge Roof Tile Roll Former10KW Metal Roof Ridge Cap Roll Forming Machine 1.25m Ridge Roof Tile Roll Former10KW Metal Roof Ridge Cap Roll Forming Machine 1.25m Ridge Roof Tile Roll Former10KW Metal Roof Ridge Cap Roll Forming Machine 1.25m Ridge Roof Tile Roll Former
