Brand Name : | DLY |
Model Number : | paneling machine |
Certification : | CE |
Price : | Negotiable |
Payment Terms : | T/T |
Supply Ability : | 30sets/month |
Delivery Time : | 40 days |
TR20 7.5T Roofing Forming Machine 380V PLC Color Steel Roll Forming
Machine
1. Description of Roofing Forming Machine
Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing
Sheet is used to make the color glazed tiles in batch by the Steel
Tile Making Machinery. the finished product of Glazed Steel Tile
Making Machinery For Colored Glazed Steel Roofing Sheet is widely
used in the construction of various industrial plants, villages,
warehouses, supermarkets, hotels, exhibition, family construction,
shopping malls shutter doors and etc. It has the advantage of
beautiful, classical appearance and grace taste. This machine
working speed is around 4-5 meter per minutes.
2. Specifications of Roofing Forming Machine
NO. | Item | Specification |
Material | Raw material | Galvanized steel or PPGI |
Thickness | 0.3-0.8 mm | |
Machine | Roller station | 13 or depend on customer' drawing |
Shaft diameter | 75 mm | |
Solid shaft material | High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment | |
Roller material hardness 30-40 HRC | Cr12 | |
Machine color | As customer need | |
Working speed | 8-20 m/min | |
Cutter | Hardness | 50-65 HRC |
Cutting tolerance | ± 1mm | |
Material | Cr12 | |
Operate | Hydraulic cutting | |
Power | Driving way | Chain 1 inch |
Main motor | 4 KW | |
Pump motor for cutter | 3 KW | |
Voltage | 380V/50HZ, 3P or Customized as customer' request | |
Control system | PLC brand | Delta made in Taiwan |
Screen | Touchable screen | |
Language | Chinese and English or add customer need language | |
Decoiler | Operation | Manual |
Weight capacity | 5 Tons | |
Price | Free as gift | |
Receive table | Operation | Manual |
Length | 3 m | |
Price | Free as gift |
3. Feathers of Roofing Forming Machine
4. Production Flow of Roofing Forming Machine
Manual decoiler→Feeding material into machine→Roll forming
machine→Measure length→Hydraulic cutting→Finished Products

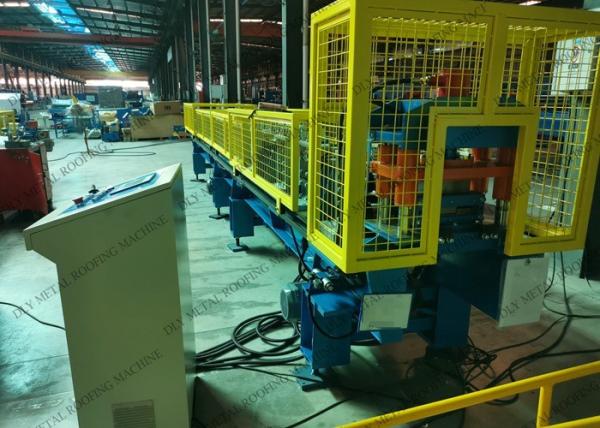

5. Details of Our Roofing Forming Machine
![]() |
