    H400 Roofing Forming Machine Trapezoidal 380v Cladding Color Steel Roll Forming Machine

    H400 Roofing Forming Machine Trapezoidal 380V Cladding Color Steel Roll Forming Machine


    1. Description of Roofing Forming Machine


    The components of the color steel roof roll forming machine include: decoiler, roll forming machine body, hydraulic cutting, plc control system, main motor, pump station, receving table.
    Equipment features: color steel roof roll forming machine adopts advanced automatic control software, shutter door machine realizes production information management, and the whole machine automatic control system adopts a highly integrated network, which makes the automation system more superior.


    2. Specifications of Roofing Forming Machine


    1Suitable to processColor steel plate, galvanized sheet, aluminum coils and etc.
    2Width of the feeding material1000mm
    3Roller station9 rows
    4Thickness of feeding material0.3-0.8mm
    5Productivity8-12m/min
    6Rollers' material45# steel
    7Diameter of shaft75mm
    8Voltage380V 50Hz 3phases
    9Wall thickness of main forming machine14mm steel plate
    10Main forming machine body300 mm H steel
    11Motor power4+3kw
    12Size7500*1500*1400mm
    13WeightAbout 4 T
    14CustomAccording to customer's requirements

    3. Feathers of Roofing Forming Machine

    • Normally at the coil feeding system, we will give manual cutter then you can remove the untidy part coil or cut at any length.
    • We Will use the rubber roller at leveling part to protect the coil surface.
    • We will add two more gears for feeding coil smoothly.
    • For the roller, we will do the chroming for long time use and beautiful.
    • For cutting, we use 4 pillar post cutting system to make sure the cutter can use long time.
    • Use special special design of cutting system for cutting fast and the cutter can use long time.
    • Good quality hydraulic jacks.
    • Use strong thickness frame and holder.
    • We will give remoter for control machine easily.

    4. Production Flow of Roofing Forming Machine


    Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products


    H400 Roofing Forming Machine Trapezoidal 380v Cladding Color Steel Roll Forming Machine

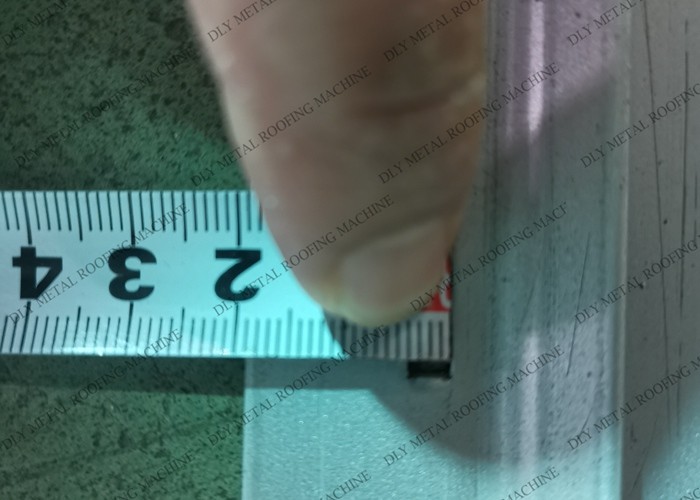

    5. Details of Our Roofing Forming Machine

    H400 Roofing Forming Machine Trapezoidal 380v Cladding Color Steel Roll Forming MachineH400 Roofing Forming Machine Trapezoidal 380v Cladding Color Steel Roll Forming MachineH400 Roofing Forming Machine Trapezoidal 380v Cladding Color Steel Roll Forming Machine
    H400 Roofing Forming Machine Trapezoidal 380v Cladding Color Steel Roll Forming Machine
