    Cr12 Plc Corrugated Roll Former For Galvanized Sheet

    Ask Lasest Price
    Brand Name : DLY
    Model Number : trapezoidal roof machine
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    Cr12 Plc Corrugated Roll Former For Galvanized Sheet

    80V 50HZ PLC Trapezoidal Roll Forming Machine For Metal Roofing


    1. Brief introduction of Trapezoidal Roll Forming Machine

    Trapezoidal Roll Forming Machine​ was used for corrugate metal sheet to different profiles, then these profiles can be used as roofing, wall, fence, light steel house and etc., our roll forming machine adopt PLC automatic control system, only need one person to operate.

    this profile is very popular used for roofing, every month have this profile machine in production.

    Our advantage is we have professional design team, we take EU machine quality as our machine standard. We pay attention to every machine details and components, so the quality of our machines has been recognized by our customers and peers.

    A roll forming machine (or metal forming machine) fabricates specific configurations out of long strips of metal, most commonly coiled steel. In most applications, the required cross-section profile of the piece is specifically designed for the machine to bend the metal as necessary.


    2. Description of Trapezoidal Roll Forming Machine


    Name
    Items
    Specifications
    Material of coil
    Material Thickness
    0.3—0.8mm PPGI, Aluzinc, galvanized steel
    Un Coiler
    5 tons manual
    Forming system
    Rolling Speed
    About 8-12m/min
    Roller Stations
    About 20 stations
    Roller material
    45# steel, coated with chrome
    Maim Motor Power
    7.5kw
    Hydraulic cutting Power
    4kw
    Cutting
    system
    Material Of Cutting
    CR12Mov with quench treatment
    Hardness
    HRC58-62
    Tolerance
    +-1.5mm
    Electrical control system
    Electric Source
    380V, 50HZ,3 phase
    Also can satisfy customer’s require
    Control System
    PLC with touch screen
    Way Of Drive
    1.2 inch single chain
    Color of the machine
    Customized
    Machine size
    About 9500*1500*1200mm

    3. Certification of Trapezoidal Roll Forming Machine

    Tile roofing machine was container load to Bosnia.

    Our roll forming machines have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!


    4.​ FAQ of Trapezoidal Roll Forming Machine


    ● What is your machine warranty?

    some quick-wear parts will be container together with machine.

    if some parts damaged within one year, we will send new one to you for free, just freight up to you.


    ● Is it complicated to operate the machine?

    It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.


    ● How many different profile roofing one machine can produce?

    One machine can produce one or two different profiles.

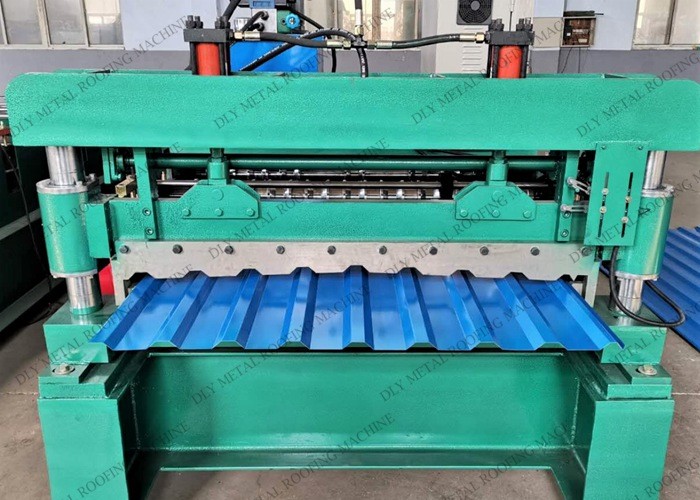

    5. Detail photos of Trapezoidal Roll Forming Machine


    Cr12 Plc Corrugated Roll Former For Galvanized SheetCr12 Plc Corrugated Roll Former For Galvanized SheetCr12 Plc Corrugated Roll Former For Galvanized SheetCr12 Plc Corrugated Roll Former For Galvanized Sheet
