Mitsubishi 0.3mm Trapezoidal Sheet Roll Forming Machine 380v60hz

    Buy cheap Mitsubishi 0.3mm Trapezoidal Sheet Roll Forming Machine 380v60hz from wholesalers

    Buy cheap Mitsubishi 0.3mm Trapezoidal Sheet Roll Forming Machine 380v60hz from wholesalers
    • Buy cheap Mitsubishi 0.3mm Trapezoidal Sheet Roll Forming Machine 380v60hz from wholesalers

    Mitsubishi 0.3mm Trapezoidal Sheet Roll Forming Machine 380v60hz

    Ask Lasest Price
    Brand Name : DLY
    Model Number : TR18-1100
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    Mitsubishi 0.3mm Trapezoidal Sheet Roll Forming Machine 380v60hz

    5kw Metal Roofing Sheet Metal Sheet Roll Forming Machine With Automatic Plc


    1. Brief introduction of Trapezoidal Roll Forming Machine

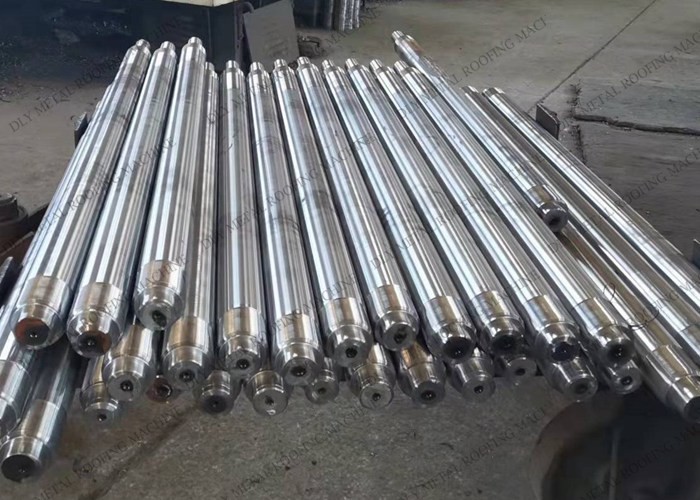

    we use bigger solid shaft diameter 80mm, which give bigger support during forming and can use for many years without deformation. 24roller station guarantee the final product precise and smooth. This roll forming machine weight about 13tons, that is mean, we use about 18ton raw material to make this forming machine.

    besides, roll forming machine parts are Exquisite processed, for example, one set rollers will be processed by two days on our 12 CNC machine.

    The last but no least, Mitsubishi or Siemens control system adopt to guarantee easy operation and stable factions.

    roll forming Machines before delivery, well installed, test many times to its best status. You are welcomed to test our machines in our factory. Or we will help you check every details your concern.

    Once rollforming machine arrive your factory,you only connect some wires and tubes according to our instruction book and video. Our technicians and engineers can assist you in your factory if your required.


    Standard roll forming machines component(working speed about 15-20m/min, 7 ton manual decoiler, forming system with post cut, hydraulic station, PLC controller, run out table without power


    2. Description of Trapezoidal Roll Forming Machine


    No.Itemparameter
    2Machine weight5t
    3Machine power4kw
    4Hydraulic engine3KW
    6Roll stations14 steps
    7Roller materialGCR15/CR12/CR12MOV
    8Effective width900mm
    9Feeding width1m/1.2mm/1.22mm customized
    10Voltage380V 60Hz 3PH/Customized
    11Material thickness0.3-0.8mm/Customized
    12Control SystemSchneider/Delta/Customized


    3. After-Sale Service of Trapezoidal Roll Forming Machine

    - Give technical suggestion


    - Test the machine before shipment


    - Provide technical guidance relate to use the machine


    - Supply one-year warranty period for the machine


    - Provide the spare parts at cost price after warranty period


    - Collect the feedback for the machine working


    - Provide long-term technical assistance.


    - Provide Pre-sales Consultant & On-purchase service & After-sales service 24hr × 7days per week


    4. Detail photos of Trapezoidal Roll Forming Machine


    Mitsubishi 0.3mm Trapezoidal Sheet Roll Forming Machine 380v60hzMitsubishi 0.3mm Trapezoidal Sheet Roll Forming Machine 380v60hz

    Mitsubishi 0.3mm Trapezoidal Sheet Roll Forming Machine 380v60hzMitsubishi 0.3mm Trapezoidal Sheet Roll Forming Machine 380v60hz
