    PPGI 380V Trapezoidal Roll Forming Machine 7000kg Zinc Sheet Making Machine

    PPGI 380V 1250mm Trapezoidal Roll Forming Machine For Metal Roofing

    1. Brief introduction of Trapezoidal Roll Forming Machine

    Trapezoidal Sheet Forming Machine make trapezoidal

    Feeding width 1220mm for R101 and 914mm for R72, ( only feed different width raw material, no need to change machine)

    Thickness 0.3-0.7mm or gauge 23-30(to produce different thickness, no need to change machine)

    Yield strength:235Mpa-550Mpa

    Any length product can be manufacture on this roll forming machine.

    Main components of roll forming machine

    5 ton manual decoiler, forming machine with post cut, PLC controller , hydraulic station, run out table

    Main features of forming machine

    mitsubishi or siemens control system to automatical produce with high precision

    26 roller stations to garantee the flat and precise of final r101 trapezoidal laminas

    forming machine weight about 11 tons

    Easy installation:

    forming lines are well installed and tested before delivery, customer only connect some wire and tubes according to video and manual to start forming machines.


    2. Description of Trapezoidal Roll Forming Machine


    Machine Specifications
    WeightAbout 9000kgs
    SizeAbout 11m x 1.7m x 1.5m (length x width x height)
    ColorMain color: blue
    Warning color: yellow
    Suitable Raw Material
    MaterialPPGI and PPGL Coils
    Thickness0.3-0.8mm
    Coil width1220mm
    Yield Strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stations22
    Diameter of forming rollers shafts80mm
    Roll Forming Speed15-20m/min
    Forming rollers materialNo.45 steel, coated with chromed treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric Power requirementMain motor power: 7.5kw
    Hydraulic unit motor power: 3kw
    Electric voltageAccording to customer’s requirement

    3. After-Sale Service of Trapezoidal Roll Forming Machine
    • Warranty :Two years,and we will provide technical support for whole life of the equipment.
    • Delivery time: Within 25 days after deposit receipt your payment
    • Guarantee period: 24months free service/ pay service all the machine life
    • Installation and training: If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.

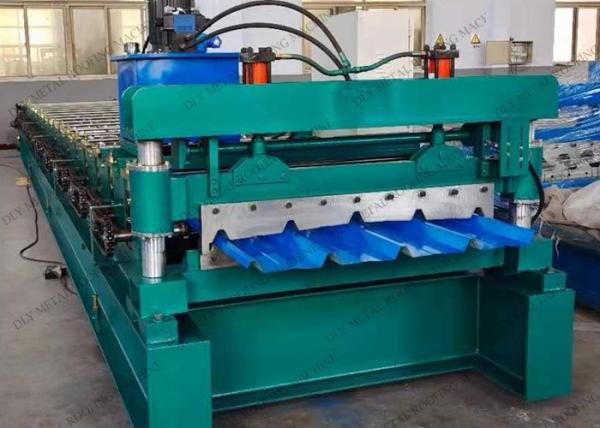

    4. Detail photos of Trapezoidal Roll Forming Machine

    PPGI 380V Trapezoidal Roll Forming Machine 7000kg Zinc Sheet Making MachinePPGI 380V Trapezoidal Roll Forming Machine 7000kg Zinc Sheet Making MachinePPGI 380V Trapezoidal Roll Forming Machine 7000kg Zinc Sheet Making Machine
