3mm C Shape Plc Purlin Roll Forming Machine 5.5kw

    Buy cheap 3mm C Shape Plc Purlin Roll Forming Machine 5.5kw from wholesalers

    Buy cheap 3mm C Shape Plc Purlin Roll Forming Machine 5.5kw from wholesalers
    • Buy cheap 3mm C Shape Plc Purlin Roll Forming Machine 5.5kw from wholesalers

    3mm C Shape Plc Purlin Roll Forming Machine 5.5kw

    Ask Lasest Price
    Brand Name : DLY
    Model Number : CU machine
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    3mm C Shape Plc Purlin Roll Forming Machine 5.5kw

    3mm C Shape Purlin Roll Forming Machine PLC 5.5kw Metal Roof Wall Panel Roll Forming Machine


    1. Description of C U Z Purlin Roll Forming Machine


    1. This machine is the industry's best value in a Rapid Inter-changeable CZ Purlin Roll forming System.

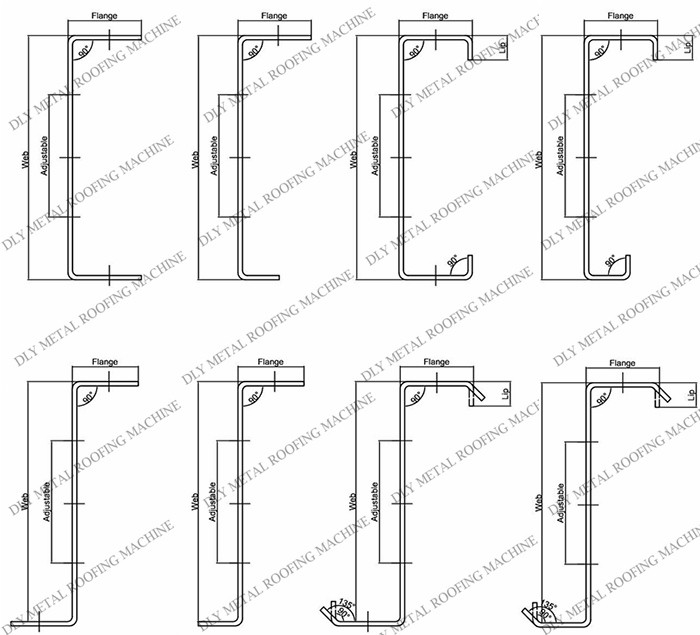

    2. Capable of producing the standard industry range of Cee, Zee, U shapes 80-300mm.

    3. Providing programmable modular hydraulic punching and cutting.

    4. Rapid C/Z profiles and its size changeover times under 5 minutes.

    5. European quality control, machine surface adopts podwer coating, coating before assembly.


    2. Specifications of C U Z Purlin Roll Forming Machine


    Machine Specifications
    WeightAbout 9000kgs
    SizeAbout 10m x 1.4m x 1.8m (length x width x height)
    ColorMain color: blue
    Warning color: yellow
    Suitable Raw Material
    MaterialGalvanized Steel Coils
    Thickness1.5-3.0mm
    Coil widthAccording to products size
    Yield strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stations14-16
    Diameter of forming rollers shafts75mm
    Roll Forming Speed10-15m/min
    Production Speed4-6m/min
    Forming rollers materialGcr15 mould steel, with quenched treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric power requirementMain motor power: 15kw
    Hydraulic unit motor power: 5.5kw
    Electric voltageAccording to customers requirement


    3. FAQ of ​C U Z Purlin Roll Forming Machine


    Q1. Do you have after-sales support?

    A1: Yes, we are happy to provide advice and we also have skilled technicians available across the world.


    Q2. Do you sell only standard machines?

    A2: No, most of our machines are built according to customers specifications, using top brand components.


    Q3. What will you do if the machine is broken?

    A3: We provide 24 months free warranty and free technical support for the whole life of any machine.If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.


    Q4. Can you be responsible for transport?

    A4: Yes, please tell me the destination port or address. we have rich experience in transporting.


    4.​ Flow chart of Purlin Roll Forming Machine


    Decoiling – Feeding - Flattening — Lip forming - Flange forming - Angle forming – Straightening - Punching - Cutting – Stacking


    3mm C Shape Plc Purlin Roll Forming Machine 5.5kw

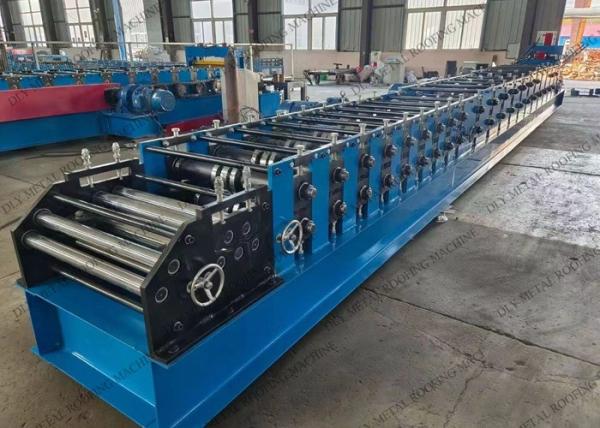

    5. Detail photos of ​C U Z Purlin Roll Forming Machine


    3mm C Shape Plc Purlin Roll Forming Machine 5.5kw3mm C Shape Plc Purlin Roll Forming Machine 5.5kw3mm C Shape Plc Purlin Roll Forming Machine 5.5kw3mm C Shape Plc Purlin Roll Forming Machine 5.5kw
