4kw 380V Double Layer Roofing Sheet Roll Forming Machine Corrugated

    Buy cheap 4kw 380V Double Layer Roofing Sheet Roll Forming Machine Corrugated from wholesalers

    Buy cheap 4kw 380V Double Layer Roofing Sheet Roll Forming Machine Corrugated from wholesalers
    • Buy cheap 4kw 380V Double Layer Roofing Sheet Roll Forming Machine Corrugated from wholesalers

    4kw 380V Double Layer Roofing Sheet Roll Forming Machine Corrugated

    Ask Lasest Price
    Brand Name : DLY
    Model Number : double layer machine
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    4kw 380V Double Layer Roofing Sheet Roll Forming Machine Corrugated

    Hydraulic Cutting 380V Metal Roofing Double Layer Forming Machine With PLC


    1. Brief introduction of Double Layer Forming Machine


    Double Layer Forming Machine offers a profitable solution for space and energy, combines Roofing, Wall Cladding, Corrugated profiles in one machine.Base on stable and durable performance, we knows well on various Roofing profile in different markets. Maximize cover width, Logo embossing, Anti-capillary grooves, we also offer customized product for client to supply their innovative idea to market.

    this serious including Roofing, Wall Cladding, Corrugated profiles for both Coated Coil (PPGI/PPGL) and Galvanized Coil (GI/GL).


    2. Specifications of Double Layer Forming Machine


    1
    Suitable to process
    Color steel plate
    2
    Width of the plate
    914mm/1000mm/1200mm/1220mm/1250mm
    3
    Thickness of the plate
    0.3-0.8mm
    4
    De-coiler
    Manual one, can load 5 tons raw material
    5
    Rollers for forming
    16 rows
    6
    Diameter of the roller
    80mm
    7
    Rolling material
    Carbon Steel 45#
    8
    Main motor power
    5.5kw
    9
    Material of the cutting blade
    Cr12 mov
    10
    Hydraulic cutting power
    4kw
    11
    Processing precision
    Within 1.00mm
    12
    Control system
    Delta PLC control
    13
    Side panel of machine
    16mm
    14
    Main structure of the machine
    350 H steel
    15
    Weight
    About 3T
    16
    Dimensions
    5.6*1.2*1.5m
    17
    Voltage
    380V 50Hz 3phases(changeable as needs)
    18
    Certificate
    CE/ISO
    19
    Custom
    According to customer's requirements


    3. Customer Feedback of Double Layer Forming Machine

    1) Engineer will give free training lessons to labors in buyer's factory.
    2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD150 per day for engineer.
    3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
    4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

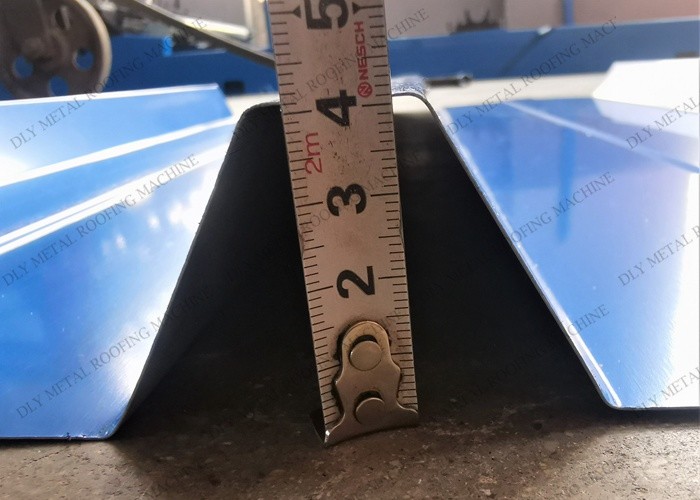

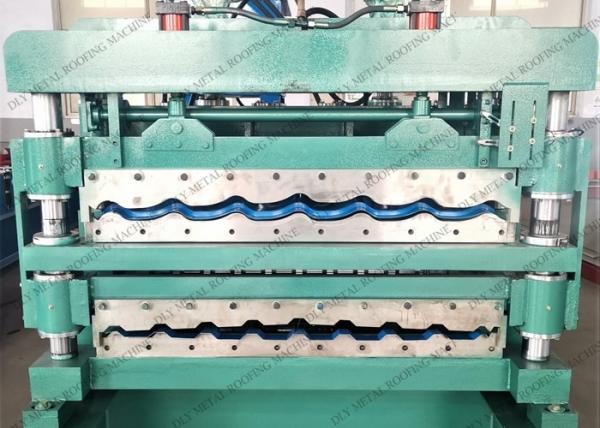

    4. details photos of Double Layer Forming Machine


    4kw 380V Double Layer Roofing Sheet Roll Forming Machine Corrugated4kw 380V Double Layer Roofing Sheet Roll Forming Machine Corrugated4kw 380V Double Layer Roofing Sheet Roll Forming Machine Corrugated

    4kw 380V Double Layer Roofing Sheet Roll Forming Machine Corrugated
