1250mm Double Layer Forming Machine Cr12 Double Deck Roll Forming Machine

    Buy cheap 1250mm Double Layer Forming Machine Cr12 Double Deck Roll Forming Machine from wholesalers

    Buy cheap 1250mm Double Layer Forming Machine Cr12 Double Deck Roll Forming Machine from wholesalers
    • Buy cheap 1250mm Double Layer Forming Machine Cr12 Double Deck Roll Forming Machine from wholesalers

    1250mm Double Layer Forming Machine Cr12 Double Deck Roll Forming Machine

    Ask Lasest Price
    Brand Name : DLY
    Model Number : double layer machine
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    1250mm Double Layer Forming Machine Cr12 Double Deck Roll Forming Machine

    Automatic Metal Roofing 1250mm Double Layer Forming Machine With PLC


    1. Brief introduction of Double Layer Forming Machine


    Double Layer machine offers a profitable solution for space and energy, combines Roofing, Wall Cladding, Corrugated profiles in one machine.

    Base on stable and durable performance, we knows well on various Roofing profile in different markets. Maximize cover width, Logo embossing, Anti-capillary grooves, we also offer customized product for client to supply their innovative idea to market.

    this serious including Roofing, Wall Cladding, Corrugated profiles for both Coated Coil (PPGI/PPGL) and Galvanized Coil (GI/GL).


    2. Specifications of Double Layer Forming Machine


    1
    Suitable material
    Color steel sheet ,galvanized steel sheet, aluminium sheet
    2
    Width of material
    1000mm
    3
    Thickness of material
    0.3-0.8mm or as your needs
    4
    Working speed
    10-20m/min
    5
    Electrical control system
    PLC control system
    6
    Shaft diameter
    80mm
    7
    Dimension
    7500x1500x1910mm
    8
    Weight
    About 7 T
    9
    Voltage
    380V 3phase 50HZ or as the customer's requirements
    10
    Material of roller
    High grade 45# forged steel plated with hard chrome plating
    11
    Material of cutting
    Cr12 mould steel with quenched treatment
    12
    Working time
    Can be 24 hours
    13
    Workers
    1-2 only

    3. Customer Feedback of Double Layer Forming Machine

    1) Engineer will give free training lessons to labors in buyer's factory.

    2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD150 per day for engineer.

    3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
    4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

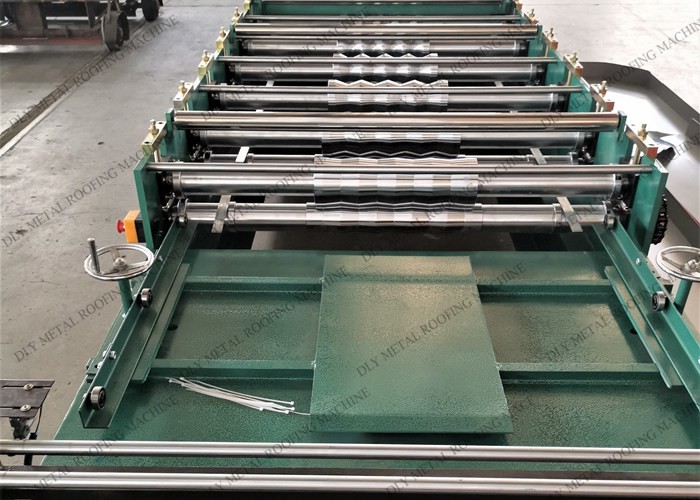

    4. details photos of Double Layer Forming Machine

    1250mm Double Layer Forming Machine Cr12 Double Deck Roll Forming Machine1250mm Double Layer Forming Machine Cr12 Double Deck Roll Forming Machine1250mm Double Layer Forming Machine Cr12 Double Deck Roll Forming Machine

    1250mm Double Layer Forming Machine Cr12 Double Deck Roll Forming Machine
