    Hydraulic Cutting H400 Double Layer Machine 15T Steel Sheet Making Equipment

    380V 15T Metal Roofing Double Layer Forming Machine With PLC


    1. Brief introduction of Double Layer Forming Machine

    Double layer forming machines for roofing and cladding sheets , with the greatest advantage is one double layer machine can make two design sheets.

    usually, one layer forming machine or single layer forming machine only make one roofing design.

    Therefore, if customer has limited install space and required to make two roofing designs, double deck machine is best choose.

    shall we introduce you difference between one layer machine and double layer machine?

    one layer machine include 5 ton manual decoiler, forming machine with post cut, hydraulic station, plc controller run out table.

    double layer machine have additional set rollers and cut blade for another roofing design. that is , two sets rollers share with one machine base, motor , hydraulic station, plc controller and cut frame.

    therefore, double layer forming machine only work one layer at one time.

    Recently, double layer machine cut controlled by motor is adopted, it is good use in hot area, because, traditionally, hydraulic station give power to cut action, if in hot area, the oil in hydraulic station will very hot.

    while motor control cut in hot area is good idea.


    2. Specifications of Double Layer Forming Machine


    MaterialApplicable materialGI(Galvanized Steel Sheet)/PPGI
    Material thickness0.12-0.5mm
    With yield strength235-345-550Mpa Yield Strength
    MachineBase frameH400 type steel
    Roller material45# steel
    HardnessHeat treatment to HRC58-62 degree
    Roller station15/15steps to form
    Shaft diameter80mm/ 75mm
    Machine size10000*2000*2000mm
    Machine weight15000kgs
    Machine color2.Blue(RAL5015)+ orange (RAL2004), as per the seller factory’s color standard
    Working speed15m/min
    CutterHardnessHeat treatment to HRC58-62 degree
    Cutting tolerance≤±1mm
    MaterialCr12MoV(= Z200C12 with at least one million times of cutting life)
    OperateBy PLC
    PowerDriving wayGear/Sprocket transmission,
    Main motor11KW
    Pump motor for cutter4kw
    Voltage220/380/415/480V- 6050Hz/3Ph --should be confirmed
    PLC Control SystemInverterSiemens
    Touch screenSiemens
    EncoderSiemens
    Cut-to-length tolerance≤±1mm
    Control voltage24V


    3. Customer Feedback of Double Layer Forming Machine


    1) Engineer will give free training lessons to labors in buyer's factory.

    2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD150 per day for engineer.

    3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
    4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

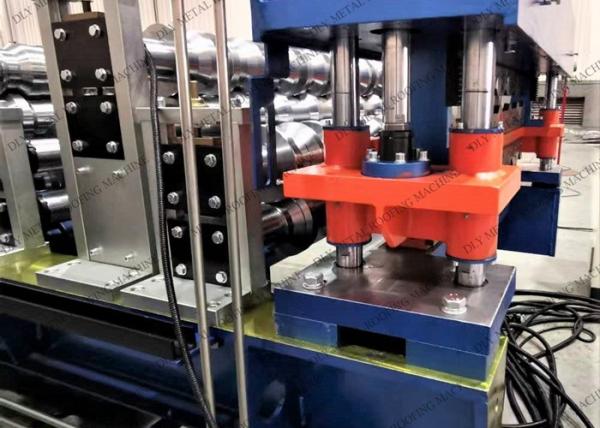

    4. details photos of Double Layer Forming Machine


    Hydraulic Cutting H400 Double Layer Machine 15T Steel Sheet Making EquipmentHydraulic Cutting H400 Double Layer Machine 15T Steel Sheet Making EquipmentHydraulic Cutting H400 Double Layer Machine 15T Steel Sheet Making EquipmentHydraulic Cutting H400 Double Layer Machine 15T Steel Sheet Making Equipment
