    0.3mm Cr12 Double Layer Forming Machine Hydraulic Cutting


    Hydraulic Cutting 0.3mm Double Layer Forming Machine Cr12 Step Tile Roll Forming Machine


    1. Brief introduction of Double Layer Forming Machine

    Double layer forming machines for roofing and cladding sheets , with the greatest advantage is one double layer machine can make two design sheets.

    usually, one layer forming machine or single layer forming machine only make one roofing design.

    Therefore, if customer has limited install space and required to make two roofing designs, double deck machine is best choose.

    shall we introduce you difference between one layer machine and double layer machine?

    one layer machine include 5 ton manual decoiler, forming machine with post cut, hydraulic station, plc controller run out table.

    double layer machine have additional set rollers and cut blade for another roofing design. that is , two sets rollers share with one machine base, motor , hydraulic station, plc controller and cut frame.

    therefore, double layer forming machine only work one layer at one time.

    Recently, double layer machine cut controlled by motor is adopted, it is good use in hot area, because, traditionally, hydraulic station give power to cut action, if in hot area, the oil in hydraulic station will very hot.

    while motor control cut in hot area is good idea.


    2. Specifications of Double Layer Forming Machine


    High quality glazed tile IBR sheet double layer trapezoidal roof press making machine roll forming machinery
    1.Formed Material
    PPGI,GI,AI
    Thickness:0.3-0.8mm
    2.Decoiler
    Hydraulic decoiler
    Manual decoiler(will give you as free)
    3.Main body
    Roller station
    18 rows(As your requirement)
    Diameter of shaft
    80mm solid shaft
    Material of rollers
    45# steel, hard chrome plated on the surface
    Machine body frame
    400 H steel
    Drive
    Double Chain transmission
    Dimension(L*W*H)
    7500*1600*1600(customize)
    Weight
    10T
    4.Cutter
    Automatic
    cr12mov material, no scratches, no deformation
    5.Power
    Main Power
    5.5KW
    6.Voltage
    380V 50Hz 3Phase
    As your requirement
    7.Control system
    Electric Box
    Customized(famous brand)
    Language
    English(Support multiple languages)
    PLC
    Automatic production of the whole machine. Can set batch, length, quantity, etc.
    18.Forming Speed
    8-12m/min
    15-20m/min
    The speed depends on the shape of the tile and the thickness of the material.


    3. Our service of Double Layer Forming Machine

    Galvanized Corrugated Steel Sheets Machine after sales services :
    1.Warranty :One year,and we will provide technical support for whole life of the equipment.
    2. Delivery time: Within 25 days after deposit receipt your payment
    3. Guarantee period: 24months free service/ pay service all the machine life
    4. Installation and training
    If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
    workers/technician face to face.

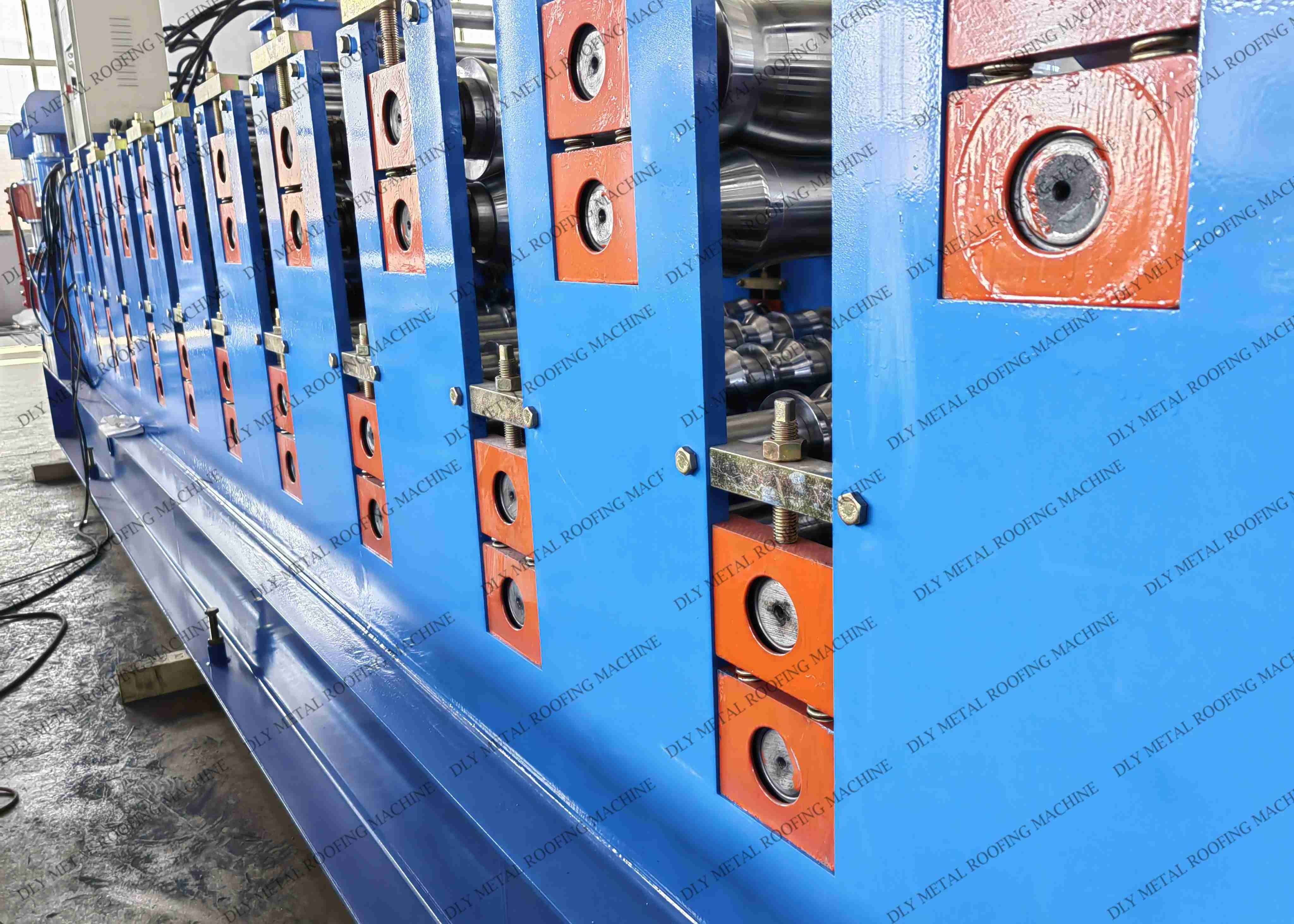

    4. details photos of Double Layer Forming Machine


    0.3mm Cr12 Double Layer Forming Machine Hydraulic Cutting0.3mm Cr12 Double Layer Forming Machine Hydraulic Cutting0.3mm Cr12 Double Layer Forming Machine Hydraulic Cutting0.3mm Cr12 Double Layer Forming Machine Hydraulic Cutting
