    Tile Plc Warehouses AI Double Layer Forming Machine 1250mm 380v

    PLC Double Roof And Wall Panel Roll Forming Machine 1250mm 380V Tile Roll Forming Machine


    1. Brief introduction of Double Layer Forming Machine

    Double Layer Forming Machine ​was used for corrugate metal sheet to different profiles, then these profiles can be used as roofing, wall, fence, light steel house and etc., our roll forming machine adopt PLC automatic control system, only need one person to operate.

    this profile is very popular used for roofing, every month have this profile machine in production.

    Our advantage is we have professional design team, we take EU machine quality as our machine standard. We pay attention to every machine details and components, so the quality of our machines has been recognized by our customers and peers.

    A roll forming machine (or metal forming machine) fabricates specific configurations out of long strips of metal, most commonly coiled steel. In most applications, the required cross-section profile of the piece is specifically designed for the machine to bend the metal as necessary.


    2. Specifications of Double Layer Forming Machine


    High quality glazed tile IBR sheet double layer trapezoidal roof press making machine roll forming machinery
    1.Formed Material
    PPGI,GI,AI
    Thickness:0.3-0.8mm
    2.Decoiler
    Hydraulic decoiler
    Manual decoiler(will give you as free)
    3.Main body
    Roller station
    18 rows(As your requirement)
    Diameter of shaft
    80mm solid shaft
    Material of rollers
    45# steel, hard chrome plated on the surface
    Machine body frame
    350 H steel
    Drive
    Double Chain transmission
    Dimension(L*W*H)
    7500*1600*1600(customize)
    Weight
    10T
    4.Cutter
    Automatic
    cr12mov material, no scratches, no deformation
    5.Power
    Main Power
    5.5KW
    6.Voltage
    380V 50Hz 3Phase
    As your requirement
    7.Control system
    Electric Box
    Customized(famous brand)
    Language
    English(Support multiple languages)
    PLC
    Automatic production of the whole machine. Can set batch, length, quantity, etc.
    18.Forming Speed
    8-12m/min
    15-20m/min
    The speed depends on the shape of the tile and the thickness of the material.


    3. Customer Feedback of Double Layer Forming Machine


    Our Corrugated Roofing Machine​ have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!


    Tile Plc Warehouses AI Double Layer Forming Machine 1250mm 380v

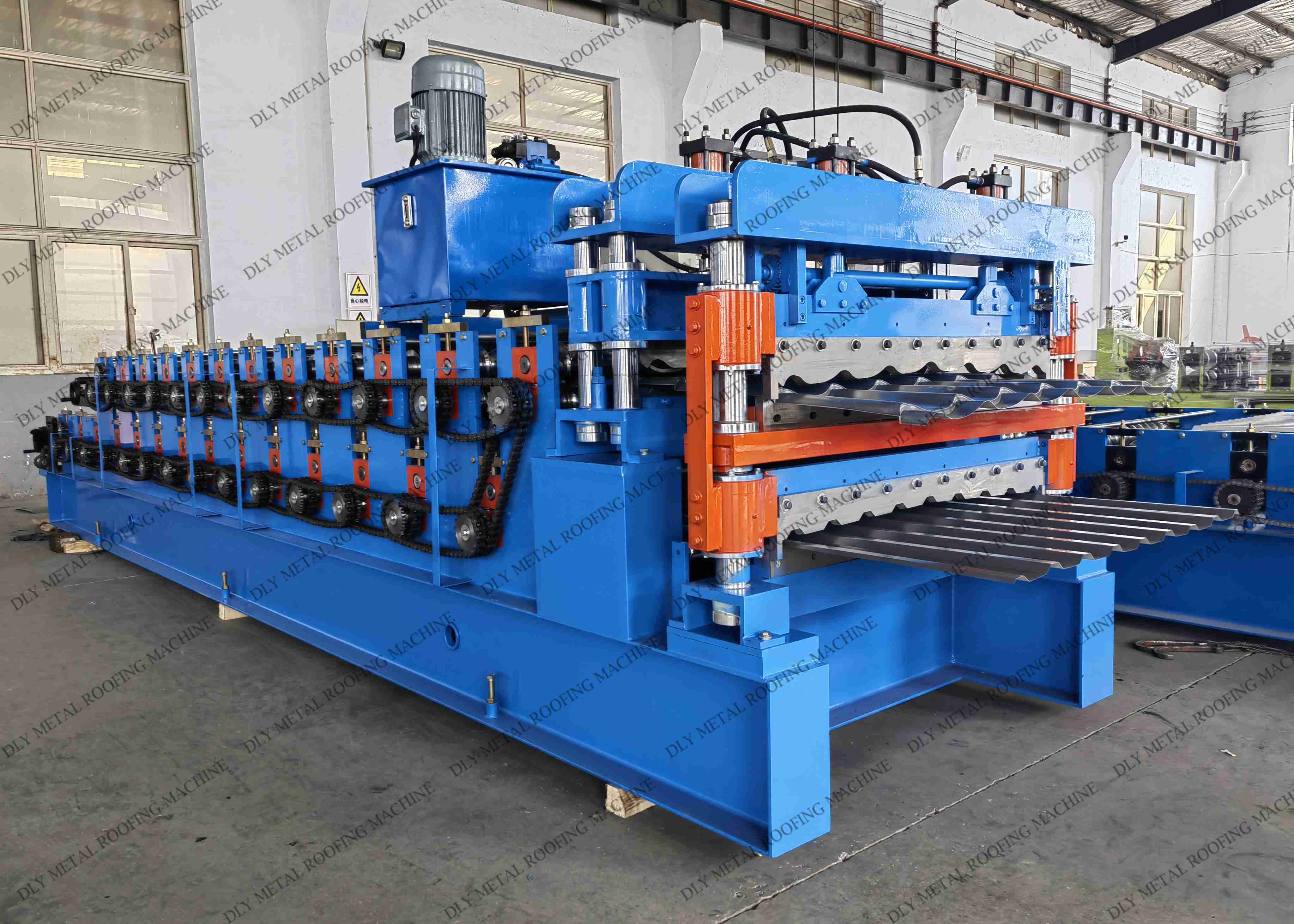

    4. details photos of Double Layer Forming Machine


    Tile Plc Warehouses AI Double Layer Forming Machine 1250mm 380vTile Plc Warehouses AI Double Layer Forming Machine 1250mm 380vTile Plc Warehouses AI Double Layer Forming Machine 1250mm 380vTile Plc Warehouses AI Double Layer Forming Machine 1250mm 380v
