Prepainted Metal Roofing Machine Plc Automatic Sheet Tile Making Hydraulic Pump

    Buy cheap Prepainted Metal Roofing Machine Plc Automatic Sheet Tile Making Hydraulic Pump from wholesalers

    Buy cheap Prepainted Metal Roofing Machine Plc Automatic Sheet Tile Making Hydraulic Pump from wholesalers
    • Buy cheap Prepainted Metal Roofing Machine Plc Automatic Sheet Tile Making Hydraulic Pump from wholesalers

    Prepainted Metal Roofing Machine Plc Automatic Sheet Tile Making Hydraulic Pump

    Ask Lasest Price
    Brand Name : DLY
    Model Number : double layer machine
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets/month
    Delivery Time : 50 days
    • Product Details
    • Company Profile

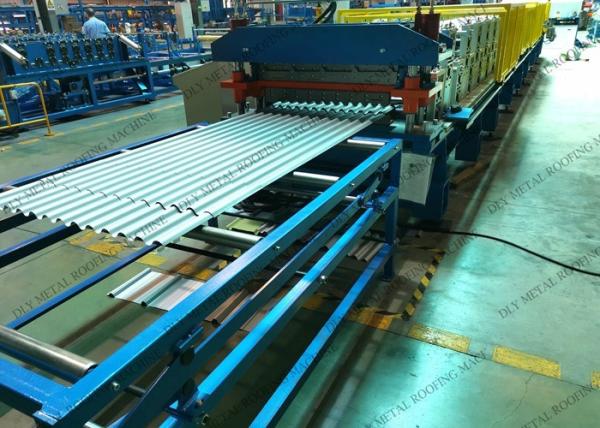

    Prepainted Metal Roofing Machine Plc Automatic Sheet Tile Making Hydraulic Pump

    380V 480V Roofing Sheet Roof Tile Making Machine With 15m Speed


    1. Brief introduction of Roof Tile Making Machine


    The production size we can design the machine all as customize,customer just show us the profile drawing material thickness width,
    Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client’s profile
    drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The main
    products are 840 color steel pressing tile forming machine, 860 color steel pressing tile forming machine, 900 color steel
    pressing tile forming machine, 1155 color steel pressing tile forming machine, 840/900 double-layer color steel pressing tile
    forming machine, 860/910 Double-layer color steel tile forming machine, double-layer tile forming machine, water-stopping machine,
    wall panel forming machine, roofing machine forming machine, angle-pressing tile forming machine, C-shaped steel forming machine,
    Z-shaped steel forming machine, glazed tile forming Machine, floor board forming tile machine, adjusting guardrail forming
    machine, automatic hydraulic automatic unwinding machine, leveling machine, etc.



    2. Roof Tile Making Machine specifications

    SPECIFICATIONS FOR Auto Steel Tile Roll Forming Machine
    Decoiler
    5TON manual decoiler
    Optional hydraulic decoiler
    Main forming machine
    forming steps
    14-18 stations
    rollers
    45#steel,surface chrome 0.03-0.05mm, Hard chrome mirror polishing, ensure roller smooth. Spacers must lathe inner holes, and do Chrome plating;
    shafts:
    70/75mm 45#steel,quenched
    Cutting system
    Cutter blade
    Cr12Mov, thickness 20mm
    Control system
    PLC
    Delta
    Transducer
    Delta
    Touch Screen
    Delta
    Power
    380V, 3Phase, 50Hz or as required
    Run out tables
    3m per set
    2 sets
    3. FAQ of Roof Tile Making Machine

    1. Does one machine can only produce one style panel profile?
    Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

    2. Do you have after sales support?
    Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

    3. How to visit your company?
    a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
    b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

    4. What can you do if the machine broken?
    Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

    5. Can you be responsible for transport?
    Yes,please tell me the destination port or address.we have rich experience in transport.

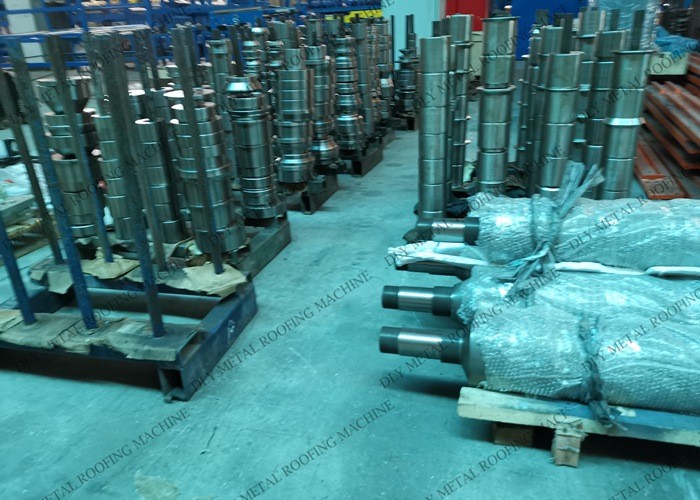

    4. Machine Detals and Container Load of Roof Tile Making Machine


    Our roll forming machines have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!


    Prepainted Metal Roofing Machine Plc Automatic Sheet Tile Making Hydraulic PumpPrepainted Metal Roofing Machine Plc Automatic Sheet Tile Making Hydraulic Pump

    Prepainted Metal Roofing Machine Plc Automatic Sheet Tile Making Hydraulic PumpPrepainted Metal Roofing Machine Plc Automatic Sheet Tile Making Hydraulic Pump
